VCGT Type PCD Inserts Precision Turning Tools for Non-ferrous Metal Mirror Finish

Short Description:

VCGT type PCD inserts are equipped with high-quality polycrystalline diamond tips, specially designed for difficult-to-machine materials such as non-ferrous metals, aluminum alloys, copper alloys and carbon fiber composites. They realize stable cutting with high precision, high surface finish and long service life, and are widely used in high-precision manufacturing fields such as automotive, aerospace and 3C electronics.

Model: VCGT Insert
Material: PCD
Insert Shape: R0.2/R0.4/R0.8 (Standard 0.4mm)
Applicable Process: Turning, Precision Turning, Profile Turning, Milling, Finishing Machining
Applicable Material: Aluminum/Copper/Magnesium Alloys, Carbon Fiber CFRP, FRP, Engineering Plastics, Non-ferrous Metals

Send email to us Whatsapp

Product Detail

Product Tags

Key Advantages

Ultra-hard & Wear-resistant, Longer Service Life than CarbidePCD hardness reaches 8000–10000HV, 8–12 times more wear-resistant than carbide inserts, greatly reducing tool change frequency and downtime cost

Mirror-level Surface Finish, No Polishing RequiredPCD850 can achieve mirror effect, PCD010 balances finish and durability, PCD302 is suitable for composites, and single crystal diamond meets ultra-precision requirements

Smooth Cutting, High Efficiency & High OutputPositive rake angle design reduces cutting force and heat generation, supports high-speed cutting, and improves production capacity and machining efficiency

Stable Precision & Good Consistency100x microscopic inspection of cutting edge, no chipping defects, high dimensional accuracy, suitable for batch precision machining

Strong Versatility & Wide CompatibilityCompatible with standard VCGT tool holders, can be used for turning, precision turning, milling and profile machining, suitable for various CNC systems

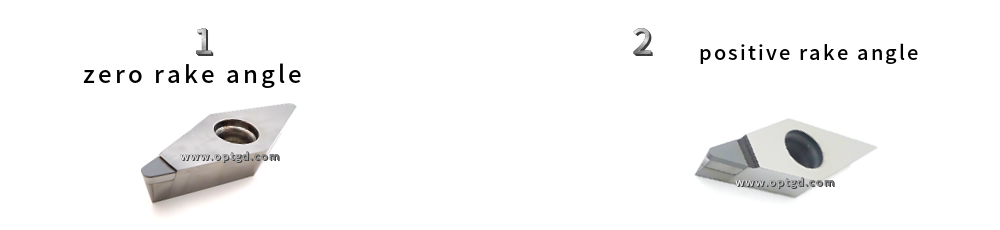

1.Zero-rake diamond inserts deliver exceptional strength, enhance compressive cutting performance, and achieve superior compressive surface finishes on workpieces.

2.Positive-Rake Diamond Inserts Deliver Smoother Cutting, Superior Chatter Resistance, and High-Efficiency Machining with Premium Surface Finishes.

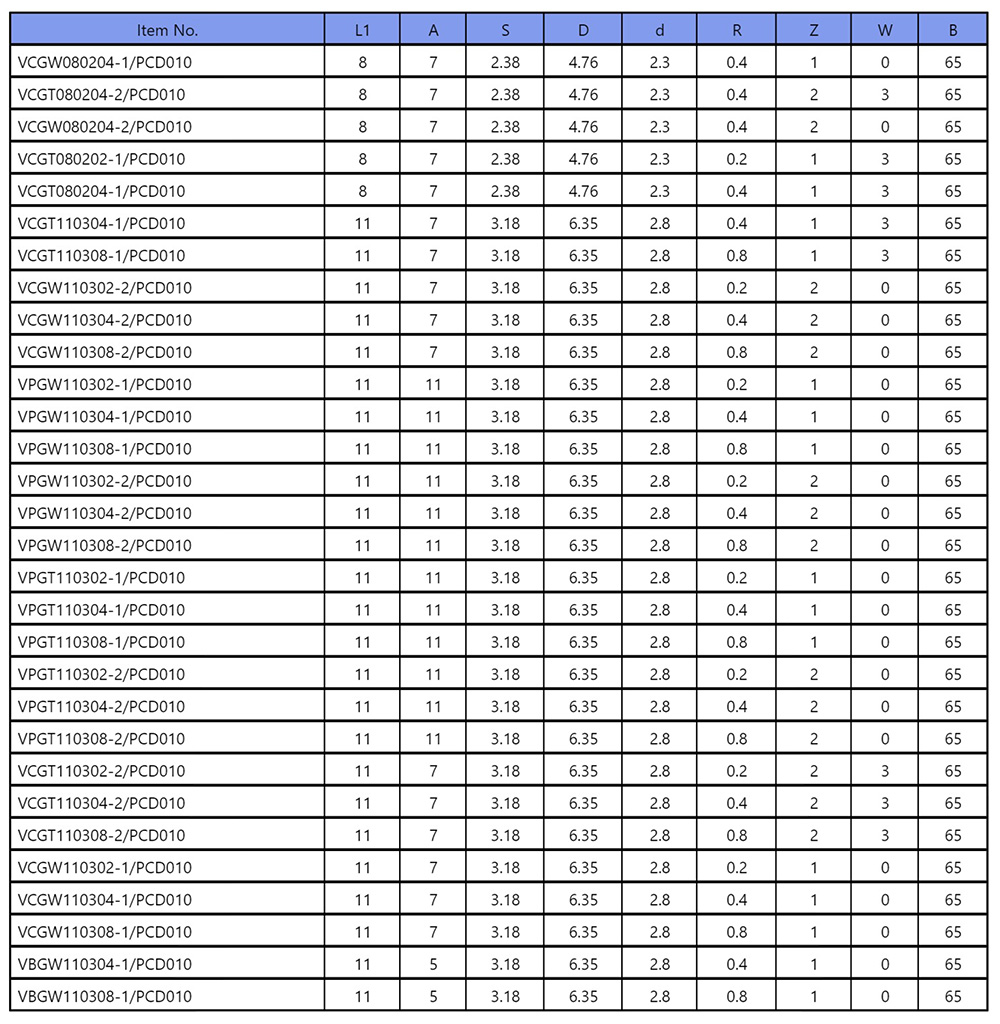

Notes: Contact us for more specifications and parameters.

Application Scenarios

Automotive Industry: Engines, Pistons, Gearbox Housings, Aluminum-Magnesium Alloy Parts
Aerospace Industry: Carbon Fiber Composites, Turbine Blades, Lightweight Structural Parts, CFRP Precision Machining
3C/Electronic Semiconductor Industry: Heat Sinks, Connectors, Housings, Guide Rails, Ultra-precision Structural Parts
General Precision Manufacturing: Copper-Aluminum Parts, Wear-resistant Plastics, Ceramics, Graphite, Mirror High-gloss Parts
