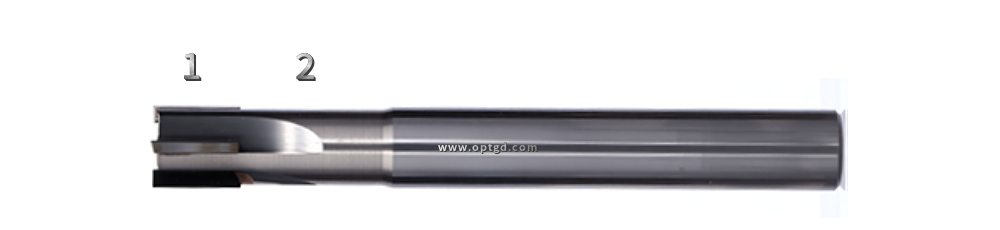

3 Flute PCD End Mill Polycrystalline Diamond Milling Cutter for High Precision Machining
Key Advantages
3-Flute Geometry: Balances chip clearance and cutting efficiency, perfect for roughing and finishing of non-ferrous materials.
Premium PCD Material: Ultra-high hardness & abrasion resistance, greatly extended tool life compared with carbide tools.
High-Speed Machining Ready: Maintains high precision and stability at elevated RPMs, improves machining efficiency.
Excellent Surface Finish: Sharp cutting edges minimize burrs, achieving smooth finishes without secondary processing.
Quality Inspected: Cutting edges inspected under 100x magnification to ensure no chipping defects.
Customizable: Support OEM/ODM, available with various PCD grades (PCD010, PCD850, PCD302) for different applications.

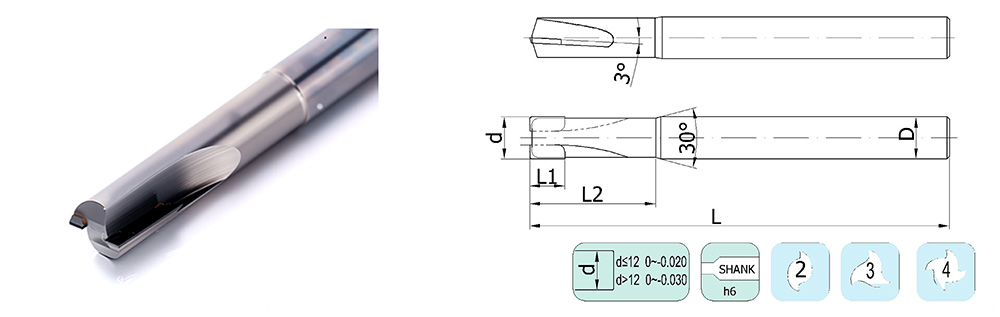

1.The number of flutes for end mills can be single-flute, two-flute, four-flute, or six-flute. According to the size and requirements of the parts to be reprocessed, customized structures can also be adopted.
2.The substrate of PCD milling cutters can adopt high-hardness steel or cemented carbide substrates. With good strength, they can improve machining efficiency and lower comprehensive costs.

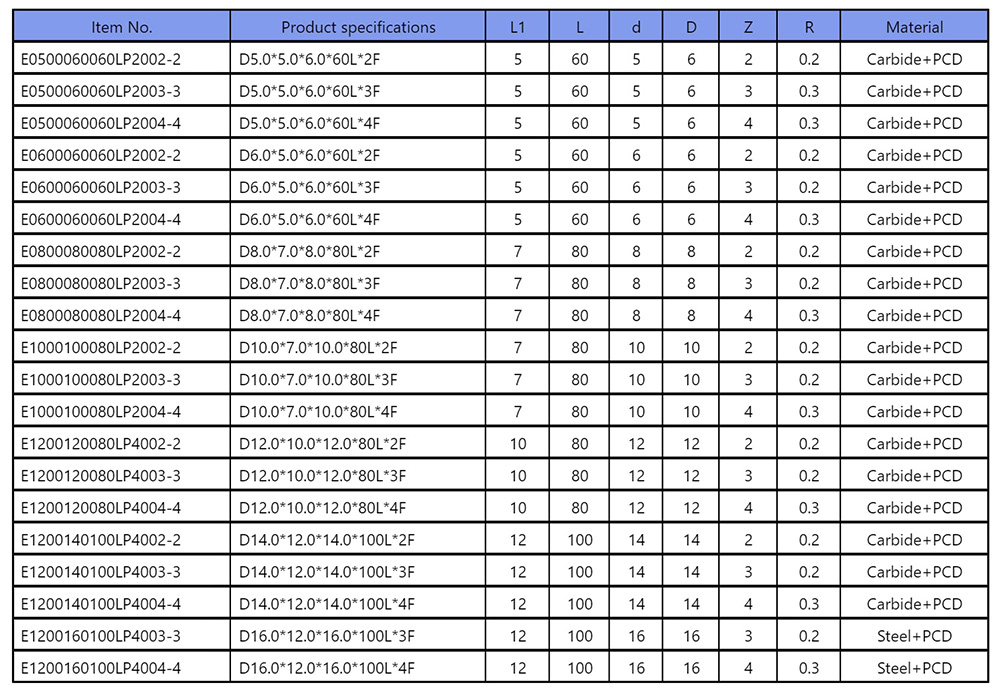

Notes: Contact us for more specifications and parameters.
Application Scenarios
Aerospace: Aluminum alloys & composite components for aircraft
Automotive: Engine parts, transmission components, lightweight structural parts
Electronics & Precision Engineering: Heat sinks, connectors, high-tolerance delicate parts
Other: Graphite electrodes, carbon fiber parts, composite material processing
