PCD Round Nose End Mill Polycrystalline Diamond Milling Cutter for Aluminum Composite CFRP
Key Advantages
Extended Tool Life: PCD cutting edge lasts up to 10 times longer than carbide tools, drastically reducing tool change frequency and production costs.
Excellent Surface Finish: Low vibration design enables high-speed machining, achieving smooth, burr-free surfaces with mirror-like quality.
Optimized Structure: Large round corner design effectively protects the tool tip from chipping; advanced flute design enhances chip evacuation, preventing clogging and improving machining efficiency
High Compatibility: Suitable for high-speed machining (HSM) with excellent heat stability, maintaining precision even under high-temperature operating conditions.

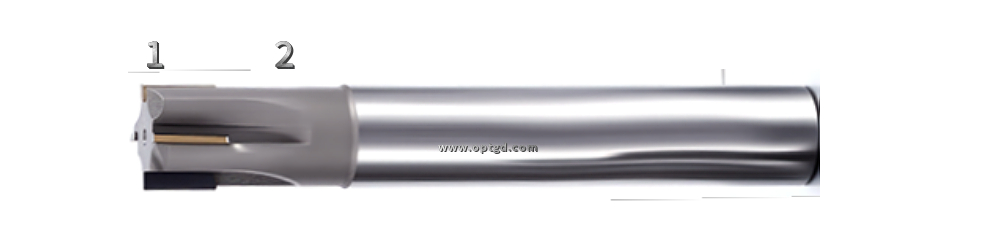

1.PCD milling cutters with large round corners can better protect the tool tip and are less prone to chipping.
2.For round-nose PCD milling cutters, the substrate is generally made of tungsten steel. For large-diameter cutters, high-hardness steel substrates can also be used；

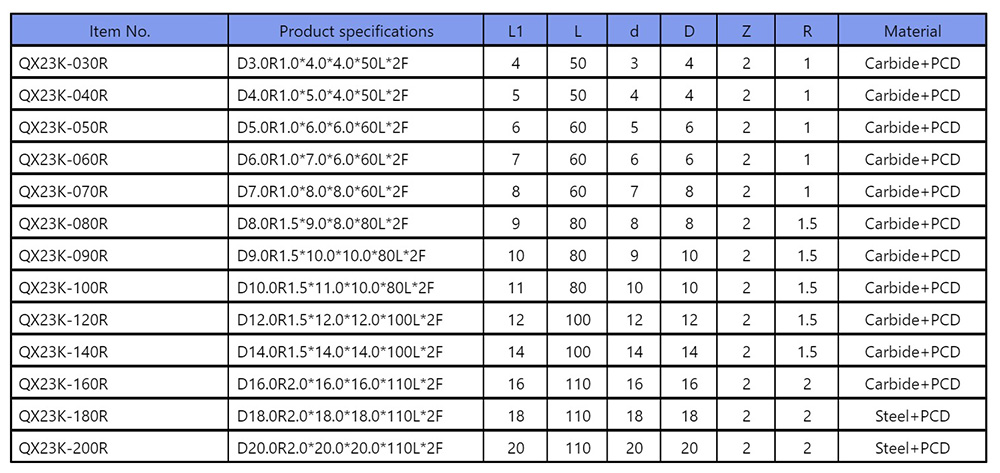

Notes: Contact us for more specifications and parameters.
Application Scenarios
Aerospace Components: Perfect for machining high-strength aluminum alloys and composite materials used in aircraft structural parts, engine components, and aerospace hardware.
Automotive Molds: Delivers precision in creating complex automotive molds, dies, and structural parts with tight tolerances and smooth surfaces.
Electronics Manufacturing: Ideal for fine detailing in graphite electrodes, fiber-reinforced plastics (FRP), and precision electronic components.
General Industry: Suitable for non-ferrous metal parts, composite material finishing, and high-precision machining of abrasive materials.
