TCGT PCD Diamond Lathe Insert Zero Rake Angle Chip Breaker Groove High Wear Resistant CNC Turning Tool

Short Description:

PCD Inserts TCGT (Triangle Carbide Substrate PCD Inserts) are high-precision superhard CNC cutting tools designed for non-ferrous metals and highly abrasive composites. Featuring PCD diamond edges brazed to carbide substrates, the zero rake angle structure combined with rake face chip breaker grooves delivers excellent extrusion finish and chip evacuation performance. Widely used in high-precision, high-volume machining scenarios such as automotive, aerospace, and electronics industries.

Model: TCGT Insert
Material: PCD Polycrystalline Diamond (Brazed Carbide Substrate)
Rake Angle: 0° Zero Rake Angle

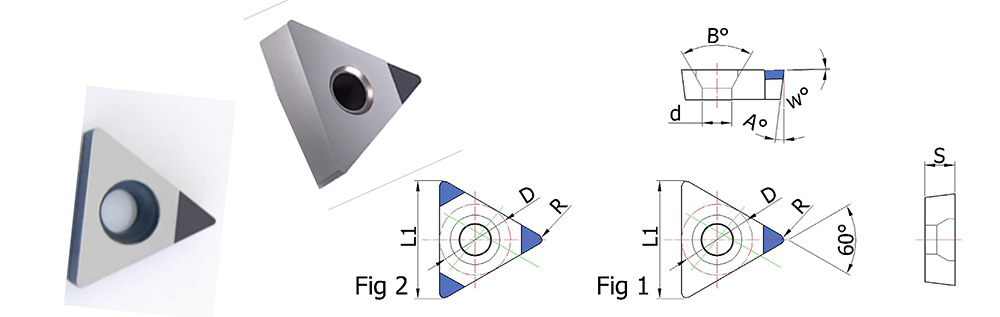

Nose Radius: R0.2/R0.4/R0.8 (Optional)
Applicable Material: Aluminum/High-Silicon Aluminum, CFRP, Copper, Graphite, Plastic, Metal Matrix Composites (MMCs)
Applicable Equipment: CNC Lathes, Automatic Lathes
Processing Type: External Turning, Facing, Precision Turning, Profile Turning

Send email to us Whatsapp

Product Detail

Product Tags

Key Advantages

Superhard & Wear-Resistant: PCD hardness is 10x that of carbide, with minimal wear when machining high-silicon aluminum/CFRP, reducing tool change frequency by 70%+

Zero Rake Angle Precision: Zero rake angle design improves workpiece extrusion finish, achieving mirror-grade surface quality without burrs or vibration marks

3-Edge High Efficiency: 3-edge tip structure suitable for high-volume automated production, increasing efficiency by 2-3x

Stable Chip Evacuation: Rake face chip breaker groove ensures smooth chip removal, preventing chip winding and workpiece scratches

High Thermal Stability: Fast heat dissipation, high temperature resistance, no deformation during high-speed cutting, and long-lasting dimensional accuracy

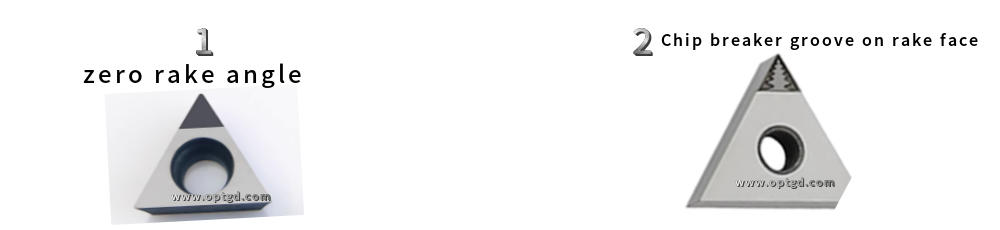

1.Diamond cutting inserts with zero-degree rake angles provide superior material extrusion characteristics, resulting in workpieces with exceptional extrusion finish quality.

2.T-type CBN inserts with three-edged tips are optimized for high-volume production. Featuring back angles and coatable edges, these tools deliver extended tool life and reduced wear—ideal for large-scale manufacturing efficiency；

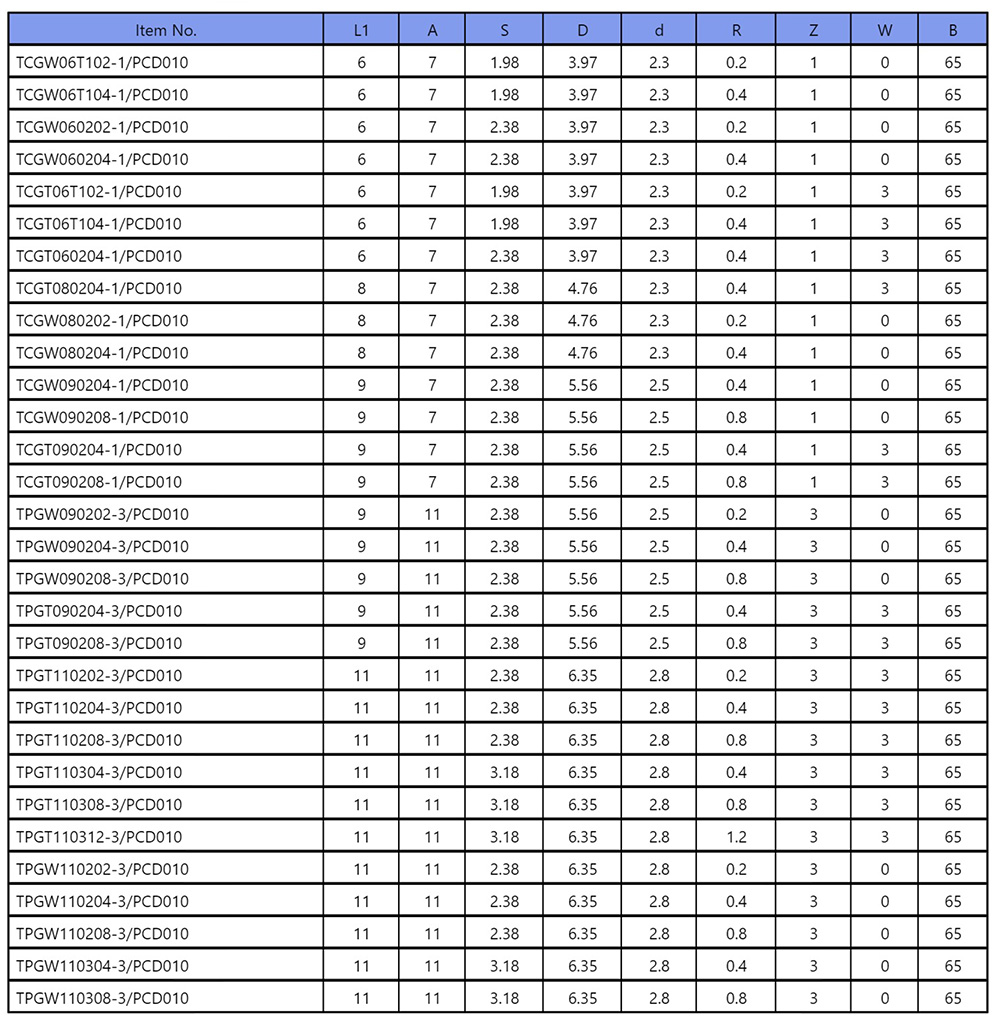

Notes: Contact us for more specifications and parameters.

Application Scenarios

Automotive (Precision turning of aluminum parts such as engine pistons, cylinder heads, gearbox housings)、Aerospace (CFRP component machining without delamination or burrs)、Electronics (Burr-free cutting of EDM graphite molds and copper electrodes)、General Machinery (High-precision, high-volume machining of non-ferrous metals/composites)
