PCD Drill Bit High Precision Industrial Drill for Composite/Aluminum

Short Description:

PCD (Polycrystalline Diamond) drill bits are engineered with ultra-hard diamond particles and high-strength tool bodies, delivering exceptional wear resistance, precision, and stability for demanding drilling applications

Cutting Edge: High-grade PCD (Polycrystalline Diamond)
Tool Body: Tungsten carbide (steel body available on request)
Compatibility: Works with chip breaker grooves

Send email to us Whatsapp

Product Detail

Product Tags

Key Advantages

Extremely Long Service Life - PCD cutting edge lasts up to 10x longer than carbide or HSS bits, greatly reducing tool changes and downtime

High Cutting Efficiency - 2-3x higher machining efficiency; enables high-speed drilling without compromising precision, boosting mass production productivity

Outstanding Machining Quality - Ensures smooth, burr-free holes with no delamination, meeting high surface finish requirements

Cost-Effective - Lower cost per hole, minimal maintenance, stable performance under heavy use, more economical for long-term applications

Resharpenable - Professional re-sharpening services restore cutting performance, extending service life further

1.PCD Drills: Machine Pilot Holes & Precision Finishes in One Pass. 2-3X Efficiency on Non-Ferrous Metals. Exceptional Accuracy Guaranteed.

2.The tool body of PCD drills should preferably adopt tungsten steel. In special cases, iron substrate can also be used.

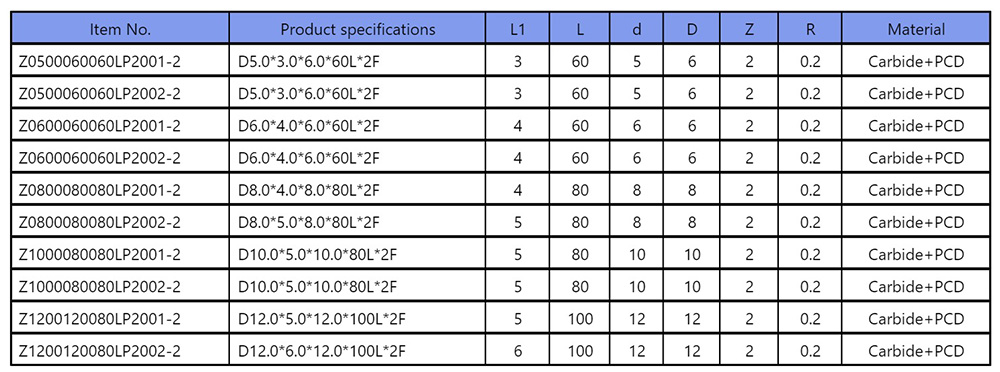

Notes: Contact us for more specifications and parameters.

Application Scenarios

Aerospace: Drilling CFRP (Carbon Fiber Reinforced Polymer) and aluminum alloys in aircraft structural components
Automotive Manufacturing: Engine parts, brake systems, lightweight structural components requiring burr-free hole
General Industry: Drilling ceramics, non-ferrous metals, and abrasive composites
