TCGW CBN Inserts Premium Cubic Boron Nitride Turning Inserts for Hardened Steel & Cast Iron 45-68HRC

Short Description:

TCGW CBN Inserts are premium cubic boron nitride superhard cutting inserts, specially designed for high-speed and precision turning of hardened steels (45-68 HRC) and cast irons. With trigon shape and 0° relief angle geometry, and a multilayer structure of CBN bonded to tungsten carbide substrate, these inserts deliver outstanding hardness, heat stability and wear resistance. They are widely used in automotive, aerospace, die & mold and other high-precision manufacturing fields.

Model: TCGW CBN Inserts
Material: Cubic Boron Nitride (CBN) + Tungsten Carbide Substrate
Application Materials: Hardened Steels (45–68 HRC), Cast Irons
Suitable Machines: CNC Lathes, Automatic Turning Machines
Machining Type: Finishing, Semi-finishing, High-Speed Turning

Send email to us Whatsapp

Product Detail

Product Tags

Core Advantages

Extreme Hardness & Wear Resistance: Second only to diamond, the CBN material offers excellent abrasion resistance, which greatly reduces frequent insert changes and production downtime.

Ultra High-Temperature Stability: Maintains stable cutting performance even at temperatures above 1200°C, making it perfect for dry cutting and high-speed machining processes.

Long Tool Life & Cost Efficiency: Compared with ceramic and carbide inserts, TCGW CBN Inserts lower per-part machining costs by 20%–30% due to their longer service life.

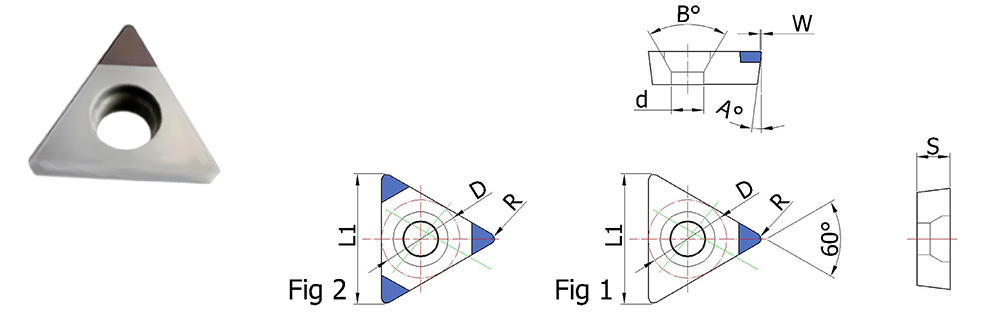

Optimized TCGW Geometry: Trigon shape with 0° relief angle ensures strong stability and wear resistance, ideal for heavy-duty turning operations.

Multi-Layer Composite Structure: High-quality CBN layer bonded with tungsten carbide substrate enables fast heat dissipation and extends tool life.

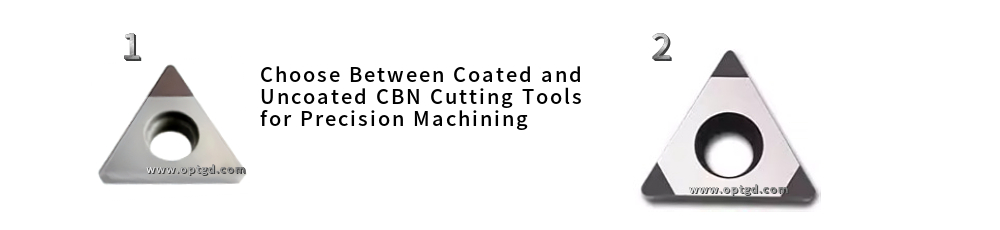

1.T-type single-edged tool tips excel in precision finishing. Tools with back angles enhance CBN cutting performance, while coated edges extend tool life—ideal for high-accuracy components.

2.T-type CBN inserts with three-edged tips are optimized for high-volume production. Featuring back angles and coatable edges, these tools deliver extended tool life and reduced wear—ideal for large-scale manufacturing efficiency；

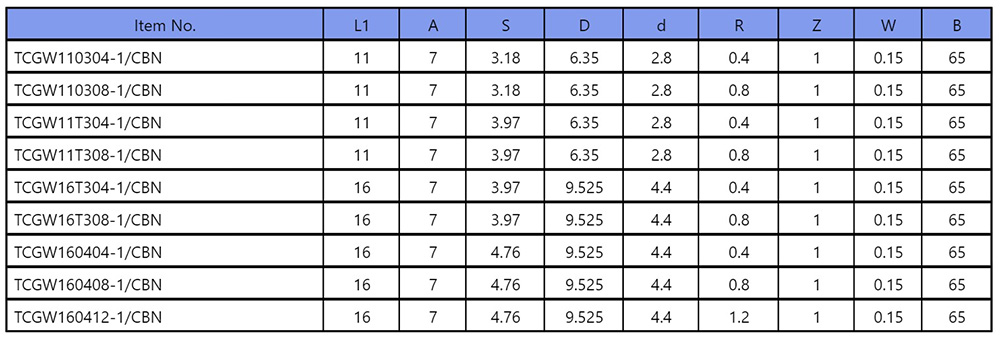

Notes: Edge rounding W=0.15mm; customizable for different workpiece materials.

Application Scenarios

Automotive Industry: Perfect for machining hardened gears, shafts, brake discs and engine parts.
Aerospace Industry: Suitable for turbine components, landing gear and other high-tolerance structural parts
Die & Mold Making: Efficiently realizes precision finishing of hardened steel dies and molds, achieving mirror-like surface quality.
General Machinery: Ideal for machining high-hardness alloy parts and high-precision mechanical components.
