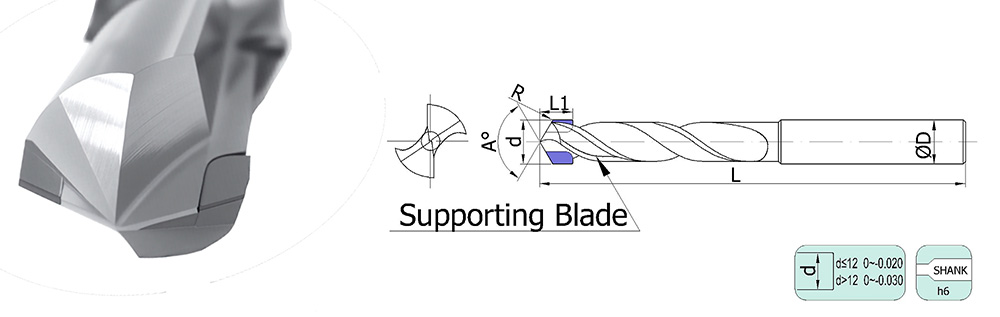

PCD Drill Reamer Precision CNC Hole Machining Tool
Key Advantages
- Exceptional Wear Resistance: PCD cutting edge delivers 10x longer tool life than traditional carbide tools, with outstanding hardness and wear resistance, greatly reducing tool replacement costs and downtime.
- High-Speed Machining Capability: Supports high-speed cutting while maintaining tight tolerances and smooth surface finishes, significantly boosting production efficiency.
- Reduced Tool Changes: Extended durability minimizes frequent tool changes, ideal for high-volume automated manufacturing.
- Superior Surface Quality: Compatible with PCD850 for mirror-style surfaces, PCD010 for balanced finish and durability, PCD302 hybrid-grain for composites, all supporting chip breaker grooves.
- Reconditionable Design: Can be re-tipped or re-polished, lowering long-term usage costs compared to full replacements.
1.PCD Drill-Reamers: Machine Pilot Holes & Precision Finishes in One Pass. Double Your Efficiency.

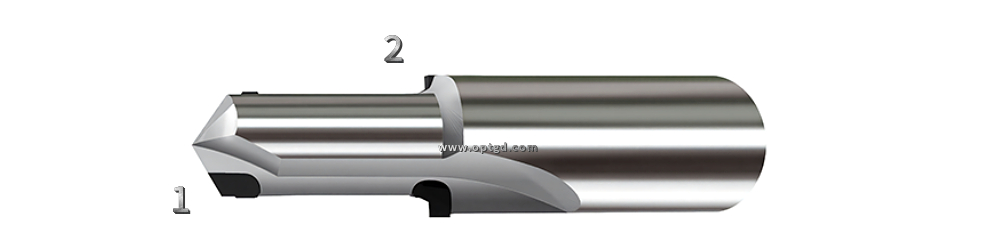

2.The structure of PCD drill reamers varies. When there is a step behind the hole, it can even machine the stepped hole in one go.

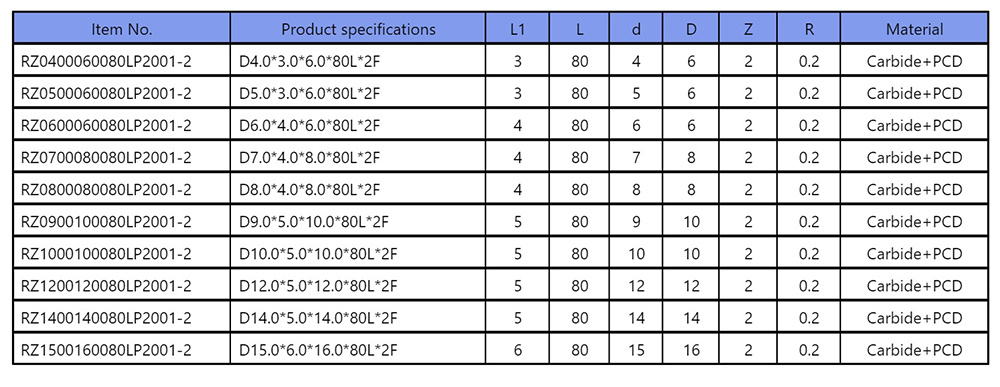

Notes: Contact us for more specifications and parameters.
Application Scenarios
Widely used in aerospace, automotive manufacturing, electronics and precision engineering:
Aerospace: Machining aluminum alloy and composite components for aircraft parts
Automotive: Engine blocks, cylinder heads, transmission components, valve guides
Electronics: High-precision connectors, housings and miniature parts with fine tolerances
