SNGA CBN Inserts High Precision Turning Inserts for Hardened Steel & Cast Iron

Short Description:

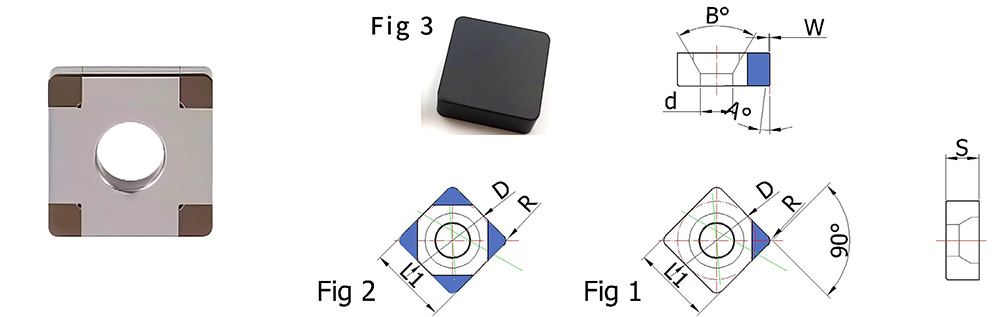

SNGA CBN Inserts are premium‑grade cubic boron nitride cutting tools for high‑precision machining of hardened steels, cast irons, and high‑temperature superalloys. Optimized SNGA geometry delivers better chip control, lower cutting forces, longer tool life, and grinding‑level surface finish. Widely used in turning, semi‑finishing and finishing for automotive, aerospace and mold making.

Material: Monolithic CBN
Model: SNGA
Operation: Turning, semi‑finishing, finishing
Machining Materials: Hardened steel (HRC45+), cast iron, superalloys
Edge Rounding: Standard 0.15mm (customizable)

Send email to us Whatsapp

Product Detail

Product Tags

Product Overview

Ultra‑Hard & Heat Resistant：Second only to diamond, stable at high temperatures for high‑speed machining.
8‑Edge & Cost Efficient ：Maximizes edge utilization, reduces tool change and production cost.
High Precision Finish：Mirror‑like surface, tight tolerance, reduces secondary grinding.
Monolithic CBN：Excellent wear resistance, stable and consistent performance.
Dry/MQL Friendly：Suitable for dry cutting or MQL, eco‑friendly and cost saving.

Product Advantages
Exceptional Hardness & Heat Stability ：High temperature resistance minimizes wear in high‑speed machining.
Cost Effective ：Longer tool life and less downtime lower per‑part cost.
Superior Surface Quality：Grading‑level finish eliminates secondary processing.
Eco‑Friendly：Multi‑edge design reduces waste; supports dry/MQL.

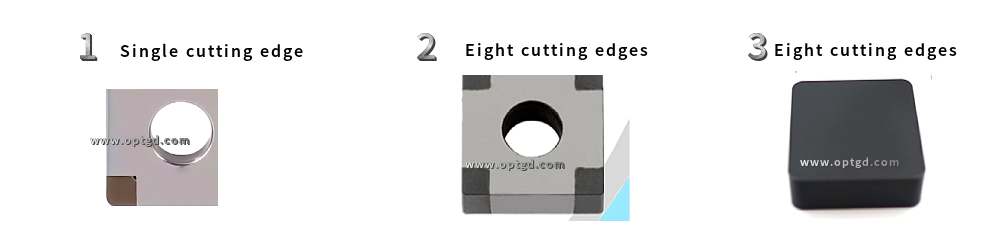

1.S-type single-edged blade tips specialize in high-precision machining. Coatable CBN edges enhance tool longevity, ideal for precision components；

2.Eight-edged tool tips optimize high-volume production. With multiple cutting edges, they dramatically reduce tool wear and promote eco-friendly manufacturing.

3.Monolithic CBN Inserts - Superior Wear Resistance for Maximum Tool Performance

Notes: Edge rounding W=0.15mm; customizable for different workpiece materials.

Application Scenarios

Hard Turning：HRC45+ hardened steel (bearings, gears, shafts) replace grinding. HRC45
Aerospace Alloys：Inconel and superalloys for turbine blades, engine parts.
Cast Iron Machining ：Brake discs, engine blocks with high efficiency.
Mold & Die：Semi‑finishing & finishing of precision molds.
