Polycrystalline Diamond Single Flute Milling Cutter for Aerospace Automotive Electronics

Short Description:

PCD (Polycrystalline Diamond) Single Flute Milling Cutter is a high-precision CNC cutting tool designed for high-efficiency machining of non-ferrous metals, composites and plastics. Adopting single-flute structure and vacuum brazing process, it delivers superior chip evacuation, strong weld strength, stable performance and extended service life, widely used in aerospace, automotive, electronics and precision manufacturing industries.

Send email to us Whatsapp

Product Detail

Product Tags

Key Advantages

Ultra-long Service Life: PCD cutting edge lasts far longer than traditional carbide tools, reducing tool changes and production costs.

High-Speed Machining: Supports high feed rates while maintaining dimensional accuracy, improving production efficiency.

Excellent Surface Finish: Achieves near-mirror effect, minimizing secondary polishing processes.
Strong Weld Strength: Vacuum brazing technology ensures firm bonding between PCD tip and carbide body, stable and reliable.

Optimized Chip Evacuation: Single-flute structure enhances chip flow, avoids chip jamming and overheating.

1.For small-diameter PCD milling cutters, two-flute designs are prone to welding difficulties and compromised tool body strength, whereas single-flute designs deliver superior performance.

2.Strong Weld Strength is Critical for Small Diameter PCD Milling Cutters. We offer vacuum brazing to ensure a secure bond and optimal PCD tool performance.

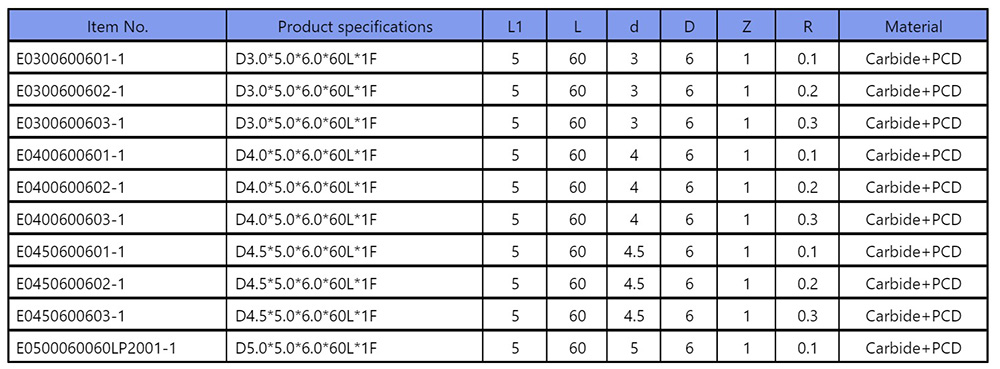

Notes: Contact us for more specifications and parameters.

Application Scenarios

Aerospace: Aircraft aluminum structural parts, CFRP components
Automotive: Engine parts, molds, lightweight components
Electronics & Precision Engineering: High-tolerance housings, connectors, precision parts
Mass Production: Stable for long-hour continuous machining, suitable for high-volume runs.
