3 Tooth Tapered Carbide Thread Milling Cutter for Medical Orthopedic Bone Plate

Short Description:

medical-grade sub-micron carbide tapered thread milling cutters deliver ±5μm ultra-precise thread tolerance, fully compliant with ISO 5832 interference fit standard. One-pass integrated drilling & threading without pre-drilling, greatly boost CNC machining efficiency for titanium & stainless steel bone plates.

Product: 3 Tooth Tapered Bone Plate Thread Milling Cutter
Material: Sub-micron medical solid tungsten carbide
Thread Accuracy: ±5μm tolerance, ISO 5832 interference fit standard
Flute Type: Spiral flutes / straight flutes optional
Coating: Custom exclusive medical anti-wear coating

Send email to us Whatsapp

Product Detail

Product Tags

Bullet Points

±5μm Ultra Precision Thread Tolerance Medical sub-micron carbide blank ensures consistent thread pitch & depth, eliminates micro-movement between bone plate and locking screws, effectively reduce post-operation loosening & inflammation risks.

Tapered 3-Tooth Optimized Flute Design Unique spiral straight composite flute structure realizes smooth chip evacuation without clogging, stable high-volume batch production, one-revolution full thread forming to streamline machining procedures.

Exclusive Medical Wear-Resistant Coating Custom coating reduces cutting friction & heat accumulation, delivers burr-free ultra-smooth thread surface; service life doubled, lower tool replacement frequency & long-term production cost.

Multi-Material Biocompatible Machining Perfectly machine titanium alloy & medical stainless steel, meet strict biocompatibility standards for orthopedic & dental implant production.

Autoclavable & Sterilizable Tool Body Withstand 135℃ autoclave high-temperature sterilization, repeated disinfection without cutting performance degradation, reusable for workshop fixture inspection.

No Bottom Hole Integrated Machining Cancel pre-drilling process, combine drilling & tapping in one cutter, save processing steps and greatly improve factory production capacity.

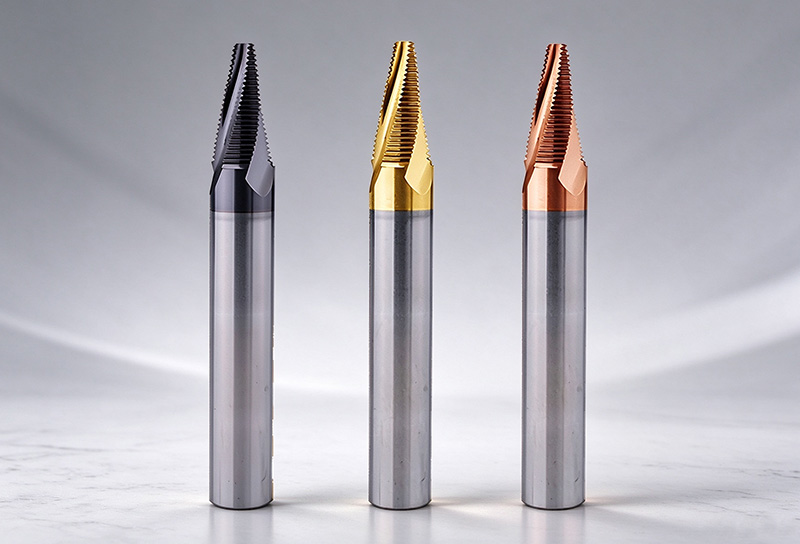

Bone-plate-thread-milling-cutter-800-544

Applications

Orthopedic Trauma Implants Machining precise thread holes for locking compression bone plates, fracture fixation plates, spinal orthopedic plates in orthopedic surgery.

Maxillofacial Dental Prosthetics Thread milling for dental bone plates, patient oral reconstruction implant workpieces.

Custom Patient-Specific Medical Devices Complex personalized orthopedic reconstructive implants, custom surgical bone fixation components.

Hot Q&A

How does this tapered thread mill improve surgical implant quality?

Answer: Ultra ±5μm thread precision eliminates tiny gaps between bone plate and locking screws, minimize screw loosening, tissue irritation and postoperative inflammation risks for patients.

Can this cutter endure repeated sterilization?

Answer: Yes. The carbide cutter body supports 135℃ autoclave steam sterilization and common medical disinfection methods, cutting sharpness and dimensional accuracy will not be damaged after multiple sterilization cycles.

What is the difference between medical tapered thread mill and standard industrial thread cutter?

Answer: Adopt medical FDA-compliant sub-micron carbide material, sharper customized cutting edge for hard titanium alloy; tapered profile specially designed for thin bone plate inner thread, fully match medical implant precision standards, ordinary industrial cutters cannot reach biocompatibility & tolerance requirements.

Can you provide customized size & coating?

Answer: Custom taper ratio, thread specification, cutter diameter, coating formula are acceptable, we support one-stop OEM & ODM service for medical cutting tools.
