60 Degree Internal External Thread Milling Cutter for Stainless Steel Titanium Alloy CNC Machining

Short Description:

Single-Flute Thread Mill is a high-precision solid carbide threading tool designed for CNC machining centers. The single-flute structure optimizes chip evacuation and effectively avoids chip clogging during deep hole threading. It can machine various 60° metric threads with different pitches; one cutter matches multiple thread sizes to greatly cut tool inventory costs.

Product: Single-Flute Solid Carbide Thread Mill
Material: Ultra-fine grain solid tungsten carbide
Thread Angle: Standard 60° Metric Thread
Coatings: TiAlN, AlTiN, TiCN, TiN
Hardness: HRC ≤65

Send email to us Whatsapp

Product Detail

Product Tags

Single-Tooth-Range-Tungsten-Steel-Thread--banner

Bullet Points

Optimized Single Flute Chip Evacuation ：Single flute design expands chip space, reduces heat accumulation, allows higher feed rates on hard tough metals, prevents chip clogging during deep blind hole threading.

Long Service Life with Custom Coatings ：Optional TiAlN / AlTiN / TiCN professional coatings reduce tool wear significantly, delivering outstanding wear resistance for long-time high-speed cutting.

Multi-Pitch Universal Compatibility：Deepened tooth profile fits multiple 60° threads with different pitches; one tool replaces multiple taps to save procurement expenses.

High Precision & Smooth Surface Finish ：Precision grinding ensures burr-free clean threads with high accuracy (IT6-IT7), less post-polishing work required.

Dual Internal & External Thread Processing ：Compatible with both internal and external threads, fits all standard CNC machines, ideal for mass batch production.

Integrated Drill & Thread Function ：Bottom-hole-free processing skips pre-drilling, shortens processing cycle and boosts workshop productivity.

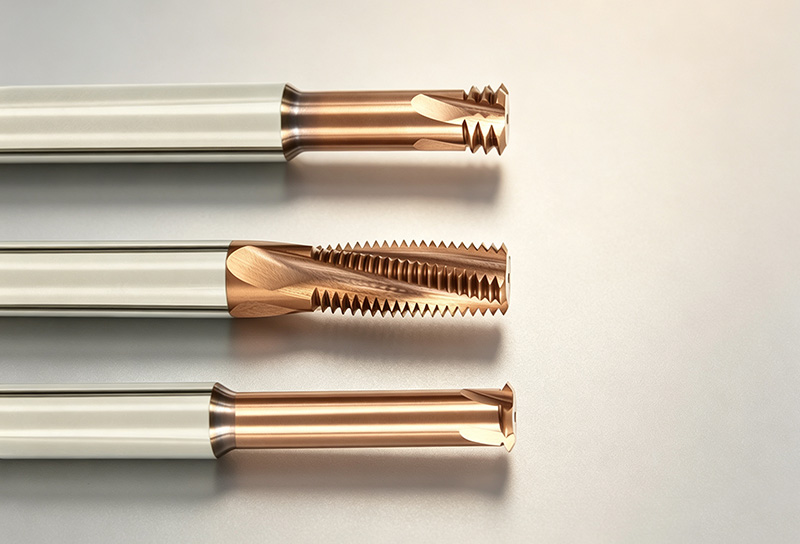

Single-Tooth-Range-Tungsten-Steel-Thread-800-544

Applications

Aerospace Industry: Precision thread for turbine parts, engine fittings, aircraft structural components
Automotive Manufacturing: Engine block, transmission housing, suspension system threaded holes
Medical Equipment: Surgical instruments, implant medical devices, micro precision thread parts
General Machinery: Mold, hydraulic valve, precision fixture, composite material workpiece
Energy & Hardware: Pump parts, pipeline fittings, stainless steel hardware mass production

Hot Q&A

hy choose single flute design instead of multi-flute thread mill?

Answer: Single flute structure provides larger chip removal space, effectively prevent chip jam; can run higher feed speed on hard materials like titanium and stainless steel, more stable for deep hole threading.

Can this cutter machine hard metal such as stainless steel and titanium alloy?

Answer: Yes. Match TiAlN coating and sufficient coolant, it can efficiently machine stainless steel, titanium alloy, high-temperature alloy while maintaining stable thread precision.

What’s the difference between thread milling and traditional tapping?

Answer: Thread mill owns stronger flexibility: one tool fits multiple thread pitches & sizes; better thread surface quality; lower risk of tool breakage in deep blind holes, easier chip discharge than taps.
