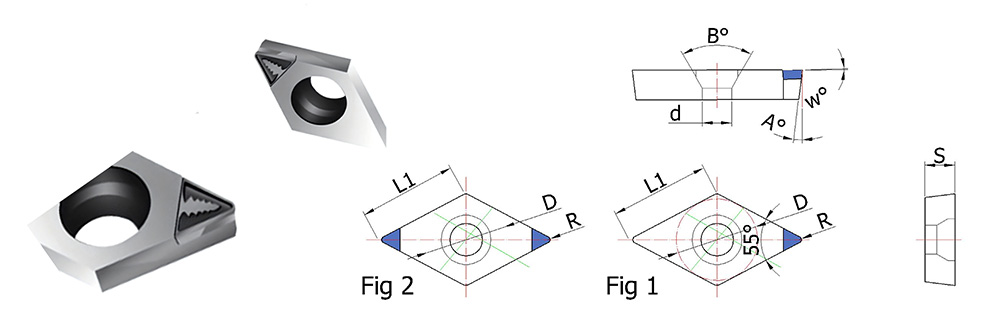

DCGT PCD Inserts Polycrystalline Diamond Turning Inserts – Double-Sided 55° Rhombus for Aluminum/Copper/CFRP
Key Advantages
Super Hard & Wear-Resistant・Long Service Life
PCD hardness reaches up to 8000–10000HV, with high temperature resistance and wear resistance. It can perform continuous cutting without chipping, significantly reducing tool change frequency and production costs.
Laser Chip Breaker・Efficient Chip Evacuation
Laser-cut chip breaker on the rake face ensures stable chip breaking, low cutting force, and vibration suppression, guaranteeing dimensional accuracy and machining safety, and increasing cutting efficiency by more than 30%.
Large Rake Angle Geometry・Smoother Cutting
Reduces cutting resistance, controls chip evacuation direction, and achieves a surface finish of Ra≤0.05μm, easily realizing mirror high-gloss effect.
Double-Sided Usability・Higher Cost-Effectiveness
◦ Double-sided cutting edge design doubles the utilization rate, reduces the cost per edge, is compatible with standard tool holders, and enables easy replacement.
Full-Process Quality Inspection・Stable & Reliable
The cutting edge of each insert is inspected under a 100x microscope, with no chipping or defects, high consistency, and suitable for mass automated production.

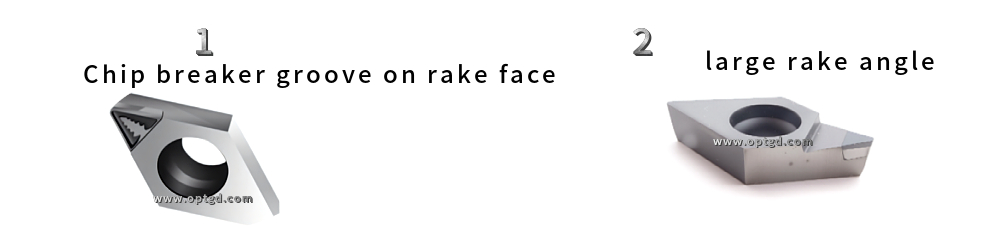

1.PCD inserts with laser-cut chip breaker grooves enable effortless chip breaking, reduce cutting forces, ensure machining precision and safety, and boost cutting efficiency；
2.Diamond inserts with large rake angles enable lighter, smoother cutting, minimize tool vibration, control chip evacuation direction, and optimize tooling costs for maximum cost-efficiency.

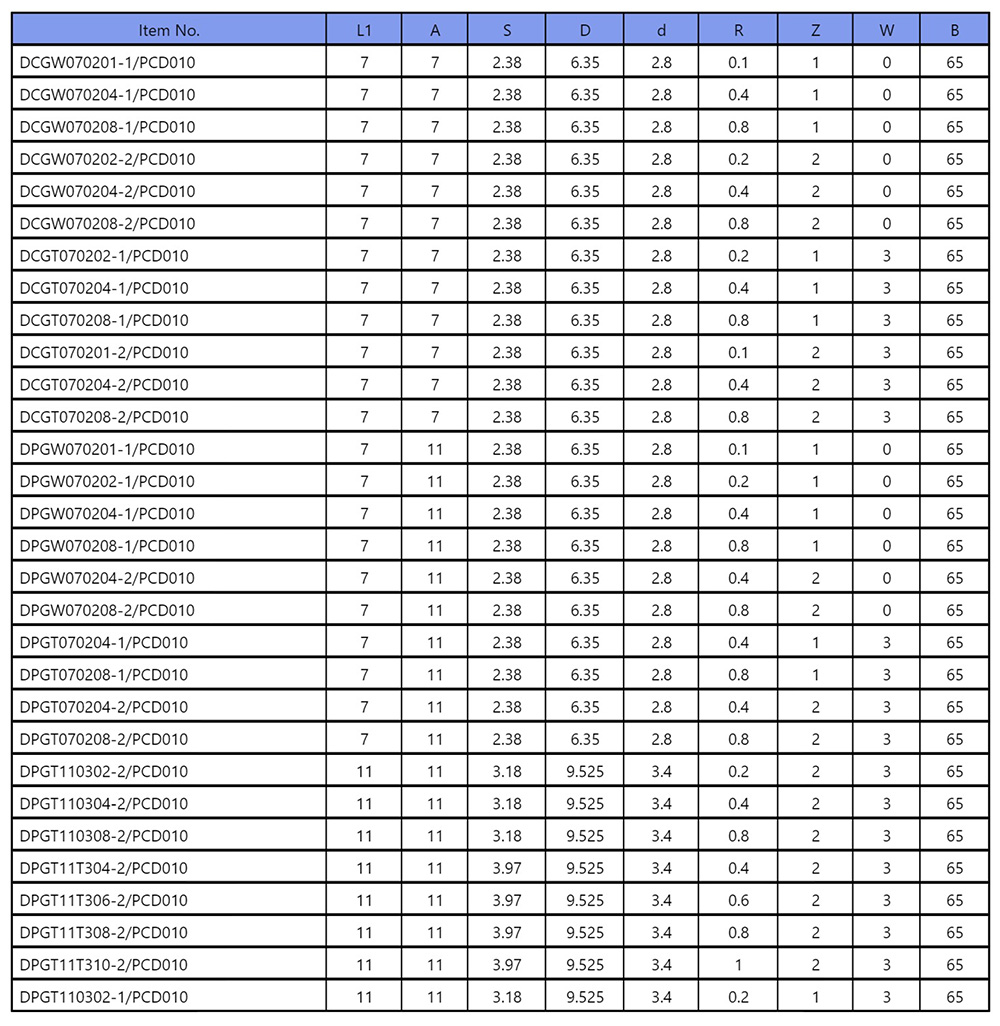

Notes: Contact us for more specifications and parameters.
Application Scenarios
- Automotive: Engine pistons, cylinder heads, high-silicon aluminum alloy housings, transmission parts
- Aerospace: CFRP structural parts, small titanium alloy parts, composite material panels
- 3C Electronics: Burr-free precision turning of connectors, housings, copper/aluminum/plastic parts
- Precision Hardware: Machining of bathroom copper parts, optical parts, and high-gloss decorative surfaces
