WNGA CBN Inserts Hard Turning Tool for Hardened Steel & Cast Iron

Short Description:

In the machining of high-hardness materials such as hardened steel, cast iron and superalloys, traditional tools suffer from easy wear and low efficiency, while the grinding process is costly and time-consuming? WNGA CBN cubic boron nitride inserts, with ultra-high hardness and excellent wear & high-temperature resistance, perfectly replace the grinding process, achieving high-efficiency precision hard turning, greatly reducing processing costs and improving production efficiency.

Model: WNGA CBN Inserts
Material: Cubic Boron Nitride (CBN) + Tungsten Carbide Substrate
Application Materials: Hardened Steels (45–68 HRC), Cast Irons
Suitable Machines: CNC Lathes, Automatic Turning Machines
Machining Type: Finishing, Semi-finishing, High-Speed Turning

Send email to us Whatsapp

Product Detail

Product Tags

Key Advantages

Extended Tool Life：Made of high-quality cubic boron nitride (CBN) material, whose hardness is second only to diamond, significantly reducing tool wear rate, decreasing tool change frequency and downtime, and lowering overall production costs.

High-Speed & Efficient Machining：Suitable for high-speed turning conditions, the machining efficiency is far superior to traditional carbide inserts, while ensuring the surface finish of workpieces without secondary polishing.

Grinding Process Replacement：Directly turning 45-65 HRC hardened steel, eliminating the grinding process, shortening the production cycle, and increasing productivity by more than 30%.

Outstanding Stable Performance：Excellent edge stability and thermal stability, suitable for continuous and interrupted cutting conditions, meeting the needs of high-volume and long-term stable production.

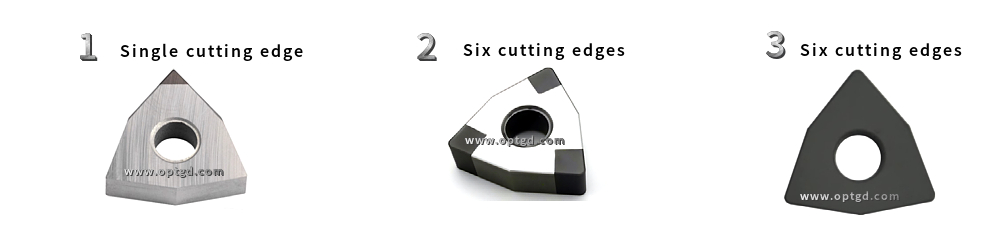

1.The single-edge tip of W-shaped CBN tools is suitable for processing high-precision and high-hardness products. The CBN cutting edge can also be coated, which can improve the service life of CBN tools.

2.The W-shaped CBN insert with six cutting edges is ideal for high-volume production, as its multiple edges reduce tool wear and contribute to environmental sustainability.

3.The W-shaped integral CBN insert is ideal for high-volume production, featuring multiple cutting edges and excellent strength to significantly reduce tool wear and conserve resources.

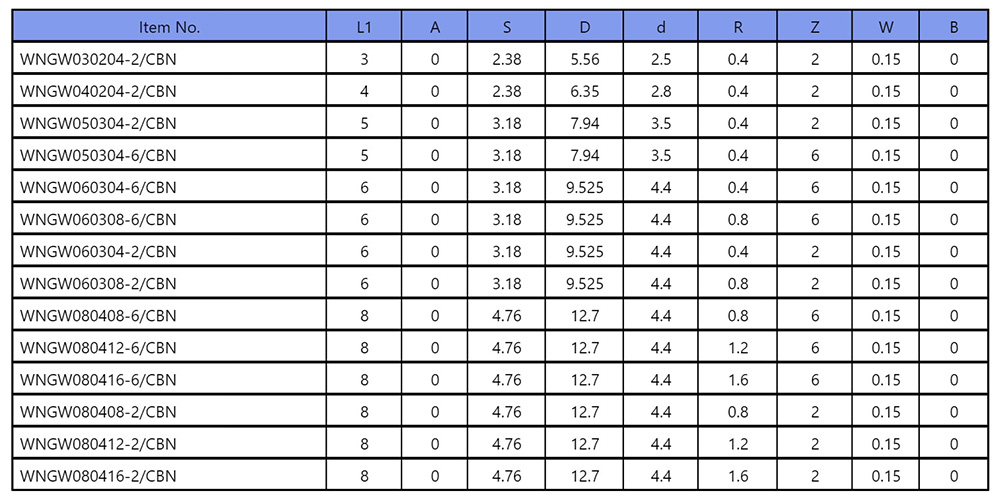

Notes: Edge rounding W=0.15mm; customizable for different workpiece materials.

Application Scenarios

WNGA CBN inserts are widely used in the machining of high-hardness parts in automotive, aerospace, die & mold manufacturing and other industries:
Automotive Industry: Machining of hardened gears, drive shafts and bearing rings
Aerospace Industry: Machining of turbine blades and landing gear components
Die & Mold Industry: Machining of high-hardness die steel cores and cavities
General Machinery: Machining of various high-hardness precision components
