CBN Inserts VNGA High Performance Cubic Boron Nitride Cutting Inserts for Hard Turning

Short Description:

CBN Inserts VNGA are high-grade cubic boron nitride cutting inserts engineered for precision machining of hardened steels, cast irons, and other difficult-to-machine materials. Featuring an optimized V-shape negative geometry, these inserts deliver stable performance, excellent chip control, and extended tool life in high-speed turning applications. Compatible with standard tool holders, they can be easily integrated into existing machining setups for seamless productivity.

Model: VCGA CBN Inserts
Material: Cubic Boron Nitride (CBN) + Tungsten Carbide Substrate
Application Materials: Hardened Steels (45–68 HRC), Cast Irons
Suitable Machines: CNC Lathes, Automatic Turning Machines
Machining Type: Finishing, Semi-finishing, High-Speed Turning

Send email to us Whatsapp

Product Detail

Product Tags

Key Advantages

Extreme Wear Resistance: CBN material offers superior hardness and excellent thermal stability, outperforming carbide inserts in high-temperature machining

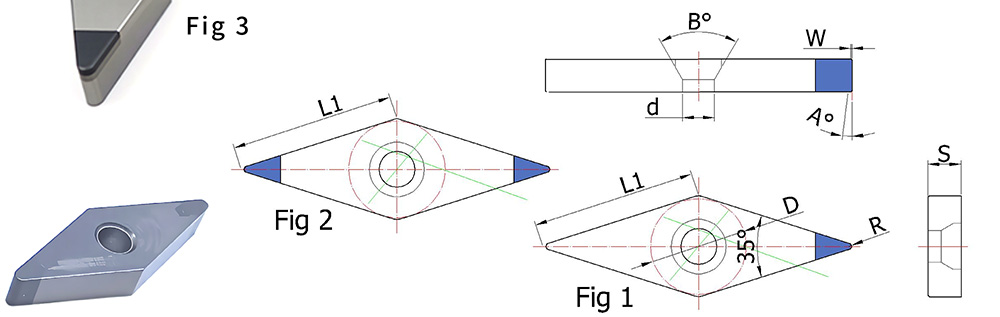

Optimized VNGA Geometry: Negative rake design reduces cutting forces, improves chip control, and enhances machining stability

High Precision Finish: Delivers superior surface quality and tight tolerances, reducing or eliminating the need for secondary finishing

Wide Compatibility: Fits standard tool holders for easy installation without modifying existing production lines

Cost-Efficient: Extended tool life and reduced downtime lower per-part processing costs in high-volume production

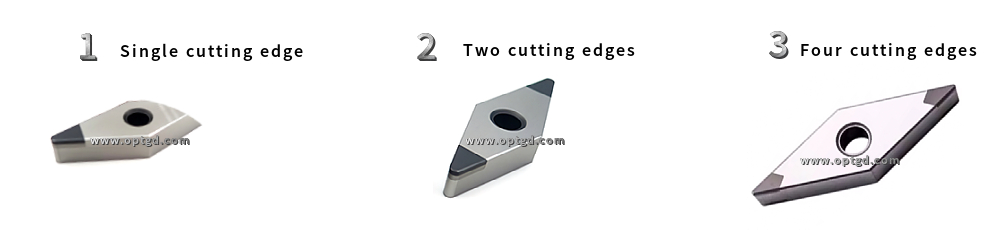

1.D-type CBN tools with single-edged tips excel in high-precision machining. Coatable CBN edges enhance tool longevity, ideal for precision components.

2.D-type CBN inserts with double-edged tips are optimized for high-volume, high-precision production. Featuring multiple cutting edges, they reduce tool wear and promote resource conservation—ideal for sustainable manufacturing at scale.

3.D-type CBN inserts with four-edged tips optimize high-volume production. Multiple cutting edges drastically reduce tool wear and promote sustainable manufacturing—ideal for eco-conscious mass production.

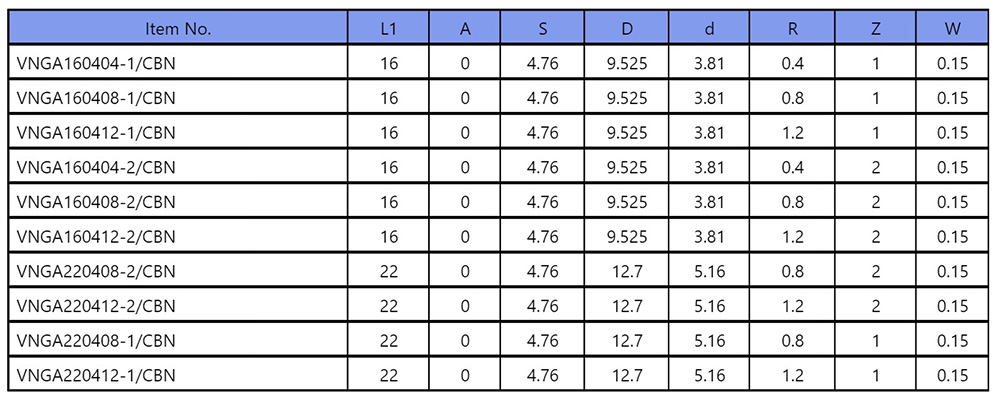

Notes: Edge rounding W=0.15mm; customizable for different workpiece materials.

Application Scenarios

Hard Turning: Ideal for machining gears, bearings, shafts, and other automotive/aerospace components made of 45–65 HRC hardened steel
Cast Iron Machining: Efficiently processes gray iron, ductile iron, and compacted graphite iron for engine blocks and brake discs
High-Speed Finishing: Suitable for precision finishing operations requiring tight tolerances and smooth surface finishes
High-Volume Production: Stable and reliable performance for large-scale manufacturing
