DCGW CBN Inserts-Hard Turning Inserts for Hardened Steel & Cast Iron CNC Turning
Key Advantages
1. High-hardness CBN material with excellent thermal stability
2. D-shaped insert for better chip control and cutting efficiency
3. Single-edged for precision finishing; Double-edged for mass production
4. Standard 0.15mm edge rounding, customizable for different materials
5. Compatible with most CNC lathes and machining centers
Product Advantages
Extended tool life, reduce tool changes and production costs
Excellent surface finish, minimize secondary processing
High temperature resistance, stable performance in extreme heat
Wide application for diversified industrial machining

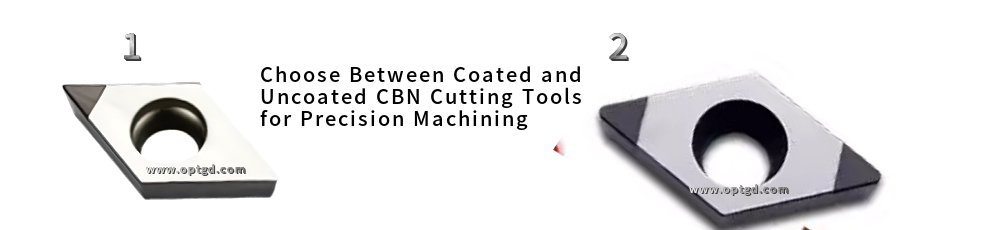

1.D-shaped single-edged tool tips are designed for precision finishing operations. Featuring a back angle for enhanced CBN cutting performance and optional edge coatings, these tools deliver extended tool life and exceptional surface quality—ideal for high-precision components in aerospace, medical, and automotive industries；
2.D-type CBN inserts with double-edged tips are optimized for high-volume manufacturing. Featuring back angles for enhanced cutting efficiency and optional edge coatings, these tools significantly extend tool life, minimize wear, and reduce operational costs—ideal for large-scale production environments demanding durability and productivity.

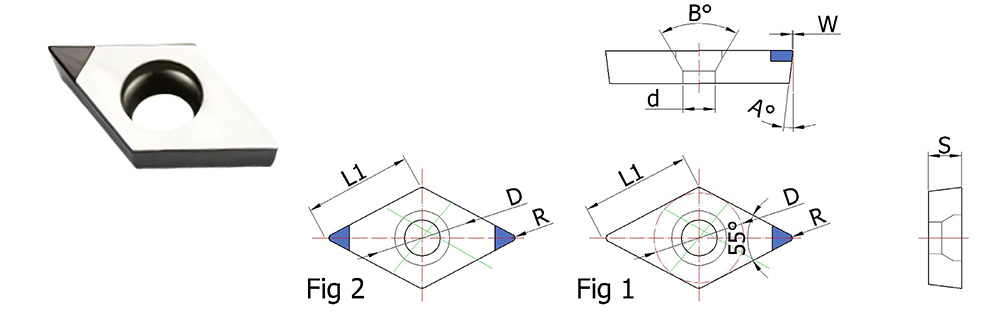

Notes: Edge rounding W=0.15mm; customizable for different workpiece materials.
Application
- Hardened steel components: Automotive, aerospace, medical precision parts
- Cast iron parts: Construction machinery, energy equipment
- High-volume & high-speed turning production lines
