Solid Carbide NPT Thread Milling Cutter for Oil Gas Hydraulic Pneumatic Fittings

Short Description:

Solid Carbide Full Tooth NPT Taper Thread Mill ANSI/ASME B1.20.1 Standard | 60° 1:16 Taper Thread | One Pass Drilling & Threading Leak-proof High Pressure Sealing for Oil Gas Hydraulic Pneumatic Systems Replace Traditional Taps, Lower Breakage Risk & Double Machining Efficiency

Product: Full Tooth NPT National Pipe Taper Thread Mill
Standard: ANSI/ASME B1.20.1
Taper Ratio: 1:16
Material: Ultrafine grain solid tungsten carbide

Send email to us Whatsapp

Product Detail

Product Tags

NPT-American-tapered-thread-milling-cutter-banner

Bullet Points

Standard NPT Taper Thread, Reliable High-Pressure Sealing :60° thread angle + 1:16 taper conforms to ANSI/ASME B1.20.1, threads with sealant achieve anti-vibration & zero-leakage performance for hydraulic and oil & gas pipelines.

Full Tooth One-Pass Forming, Higher Production Efficiency :Complete full NPT thread profile in one cut; integrated drilling & threading eliminates separate tapping process, cuts machining overhead and doubles output for mass production.

Flexible Multi-Material Machining & Long Tool Life :Micro-grain carbide base + optional TiAlN/TiN coating, stable cutting on carbon steel, stainless steel, cast iron, aluminum alloy; drastically reduces tool wear compared to standard taps.

Low Breakage Risk, Superior Chip Control :Spiral flute /straight flute optional for smooth chip evacuation; lower cutting force avoids tap breakage especially on hard metals and deep blind holes.

Wide Compatibility, Cost Saving Inventory :Single tool covers multiple NPT sizes; replace multiple taps to cut purchasing and stock costs, supports all CNC machining centers.

Fits Both Through & Blind Holes:Custom reduced shank structure available for deep blind hole threading to guarantee full thread depth processing.

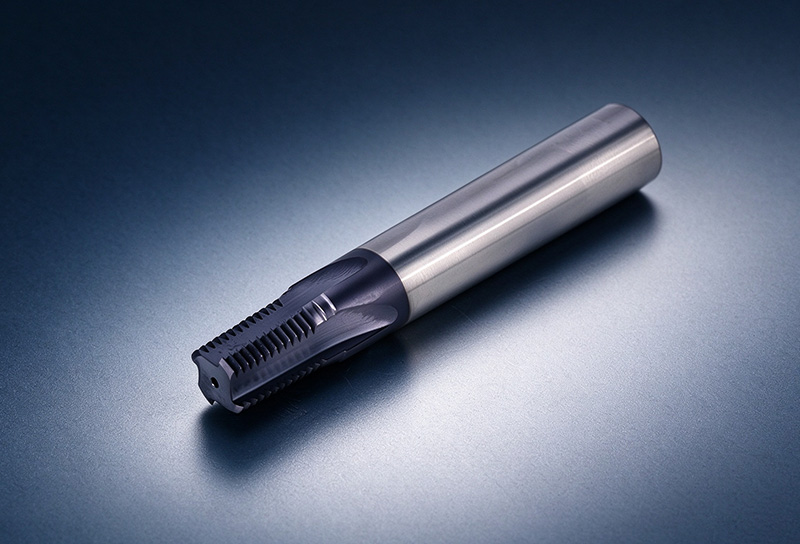

NPT-American-tapered-thread-milling-cutter-800-544

Applications

Oil & Gas Industry Produce leak-proof threaded joints for pipelines, well drilling equipment, pressure valves and fluid control manifolds.

Hydraulic & Pneumatic Components High-pressure hydraulic cylinders, air pipe fittings, pressure regulators requiring sealed NPT connections.

General Mechanical Manufacturing Automotive parts, machinery housings, industrial plumbing fixtures, mold fluid cooling channels.

North American Standard Equipment All equipment adopting ANSI NPT pipe thread standard for export to US, Canada, Mexico markets.

Hot Q&A

Can this NPT thread mill process both through holes and blind holes?

Answer: Yes. Standard model works for through holes; we provide customized reduced shank cutters for deep blind holes to reach full thread depth.

What are the advantages compared with traditional tapping taps?

Answer: ① One tool fits multiple NPT sizes to reduce inventory; ② Better chip evacuation, less jamming; ③ Lower risk of tool breakage on stainless steel & hard alloy; ④ Higher surface finish without burrs, less post-processing.

How to extend tool service life?

Answer: Use matched cutting fluid according to workpiece material; follow recommended spindle speed & feed rate; regular inspection for edge wear; carbide coated version is more wear-resistant for abrasive materials.
