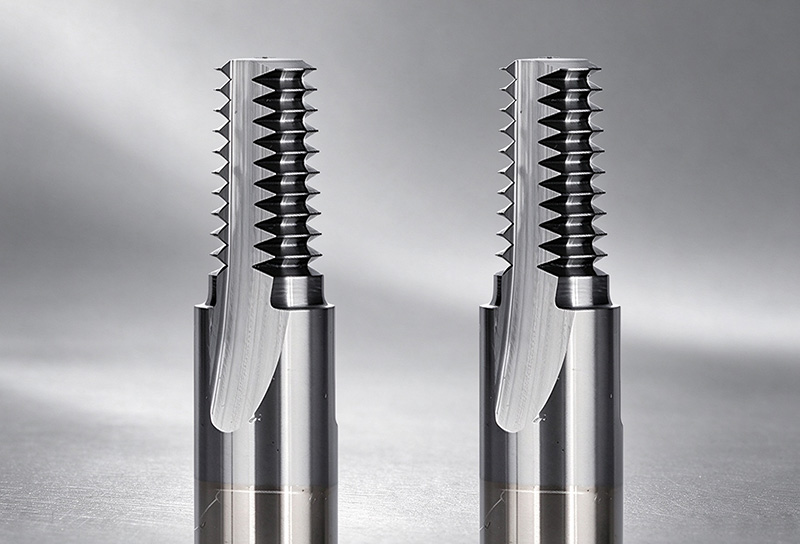

Factory Custom Solid Carbide NPTF Dry Seal Pipe Thread Mill

Short Description:

NPTF dry-seal taper pipe thread mills and NPS straight pipe thread mills are two separate product lines of high-precision CNC cutting tools manufactured in strict accordance with ASME B1.20.3 (Dryseal Pipe Threads) for NPTF and ASME B1.20.1 for NPS, made of solid micrograin carbide (WC-Co, grain size ≤0.8 um).

Standard: ASME B1.20.1 / NPTF Dryseal Taper Pipe Thread per ASME B1.20.3; NPS Straight Pipe Thread per ASME B1.20.1
Material: Solid Micrograin Carbide (WC-Co, grain ≤0.8 μm)
Coating: TiAlN for carbon & alloy steel
Thread Type: Internal & External
Processing Material: Carbon Steel, Stainless Steel, Ductile Iron, Alloy Steel

Send email to us Whatsapp

Product Detail

Product Tags

Bullet Points

Dry-seal & Sealant-free: Mills ASME B1.20.3 compliant NPTF truncated crest/root dry-seal profiles, achieving metal-to-metal sealing of mating internal and external threads at rated assembly torque without PTFE tape or sealant;

Two Separate Product Lines: NPTF dry-seal taper threads (ASME B1.20.3) and NPS straight pipe threads (ASME B1.20.1) are two independent lines with different thread profiles that must be selected separately, covering a wide range of pipe specifications;

Integrated Drilling & Milling: A combined drill + thread mill solution completes drilling and threading in one setup, reducing tool changes and re-alignment; cycle time can be shortened by approx. 15%-25% depending on diameter, pitch and batch size. A pilot hole per ASME B1.20.3 recommendation is still required;

Wear-resistant Coating: TiAlN / AlCrN / TiAlSiN coatings matched to the workpiece material (uncoated or DLC/ZrN for aluminium and non-ferrous metals), adapting to harsh oilfield and marine conditions and extending tool service life;

Multi-material Adaptability: Suitable for processing carbon steel, stainless steel, ductile iron, alloy steel and other industrial metal pipes;

Single-profile Tools Handle Both: Single-profile thread mills machine internal (female) and external (male) pipe threads; multi-tooth full-profile tools are limited to internal threads of matching specification;

High-precision & Burr-free: Body radial runout ≤3 um, thread half-angle deviation ≤±15', L1 gauge (go/no-go) acceptance rate ≥99.5%, thread surface Ra ≤1.6 um, reducing product rejection rate.

Applications

Oil & Gas Industry: Suitable for thread processing of high-pressure oil and gas transmission pipelines in oilfields with stable sealing under compliant thread fit and rated assembly torque;

Hydraulic Equipment: Precision thread processing for hydraulic valves, cylinders and pipe joints, adapting to long-term use of hydraulic oil media;

Municipal Water Infrastructure: Thread processing of water supply and sewage pipe fittings with corrosion resistance and firm connection for outdoor infrastructure projects;

HVAC Industry: Sealing thread processing for heating, ventilation and air conditioning pipelines of commercial buildings with high installation compatibility;

Marine Industry: Special coated milling cutters for ship pipelines, resistant to marine corrosion for precision ship pipeline processing.

Hot Q&A

What is the difference between NPS and NPT threads?

Answer: NPS is a cylindrical straight pipe thread without taper; it does not seal by thread form, and its sealing method depends on the connection type (e.g. NPSM mechanical joints use gaskets, NPSL uses sealant). NPT is a tapered pipe thread. Our product mills NPTF dry-seal tapered threads to ASME B1.20.3 with truncated crest and root, available in Class 1 and Class 2. Although NPTF shares the same 1:16 taper with NPT, they are not guaranteed fully interchangeable and must be verified with an L1 gauge. Sealing is achieved by metal-to-metal interference without any sealant, suitable for harsh high-pressure and high-temperature working conditions.

Can this cutter process internal and external pipe threads?

Answer: Yes. With single-profile thread mills and dedicated CNC fixtures, both internal (female) and external (male) NPTF pipe threads can be machined; multi-tooth full-profile tools are limited to internal threads of matching specification, offering high cost performance.

How to extend the tool service life?

Answer: Maintain sufficient lubrication during processing, clean metal shavings in time, and adopt reasonable spindle speed and feed rate to avoid tool overheating and excessive wear, effectively prolonging tool service life.
