How to Choose the Right Carbide End Mill: A Practical Selection Guide

Selecting the correct carbide end mill can mean the difference between a smooth, efficient machining process and one plagued by poor surface finish, short tool life, and excessive scrap. Understanding how to choose a carbide end mill requires consideration of several key factors that determine cutting performance.

1. Match the Flute Count to the Application

Flute count is one of the most critical selection criteria:

• 2-flute end mills — Best for aluminum and non-ferrous materials where chip evacuation is the priority. The larger flute gullets prevent chip packing in soft, gummy materials.
• 3-flute end mills — An excellent compromise for stainless steel and harder alloys, offering better feed rates than 2-flute while maintaining adequate chip space.
• 4-flute end mills — Ideal for steel and cast iron in profiling and finishing operations. The additional cutting edges provide better surface finish and allow higher feed rates in harder materials. The 4-flute modular end mill is particularly effective for roughing and semi-finishing in steel.

2. Consider the Helix Angle

Helix angle affects chip evacuation, cutting forces, and surface finish:

• 30°–35° standard helix — General-purpose applications in most materials.
• 38°–45° high helix — Excellent for aluminum and non-ferrous materials; provides superior chip evacuation and shearing action. The high helix ballnose end mill demonstrates how high helix angles also benefit hard material machining by reducing cutting forces.
• Variable helix — Unequal helix angles reduce harmonic vibration, making these tools ideal for challenging materials like stainless steel and titanium.

3. Select the Right Coating

Coatings dramatically affect tool performance and life:

• Uncoated — Suitable for non-ferrous materials like aluminum, brass, and plastic.
• AlTiN — The workhorse coating for steel and stainless steel; performs well at high temperatures up to 800°C.
• TiSiN — Excellent for hardened steel (up to 60 HRC) due to its superior oxidation resistance.
• Diamond-like Carbon (DLC) — Ideal for non-ferrous materials, preventing built-up edge in aluminum.

4. Choose the Appropriate Tool Geometry

For specialized applications, tool geometry must be matched to the task. The carbide forming cutter with anti-vibration design illustrates how purpose-built geometries — incorporating formed profiles and vibration-damping features — can dramatically improve performance in challenging materials like stainless steel.

5. Consider Modular vs. Solid Carbide

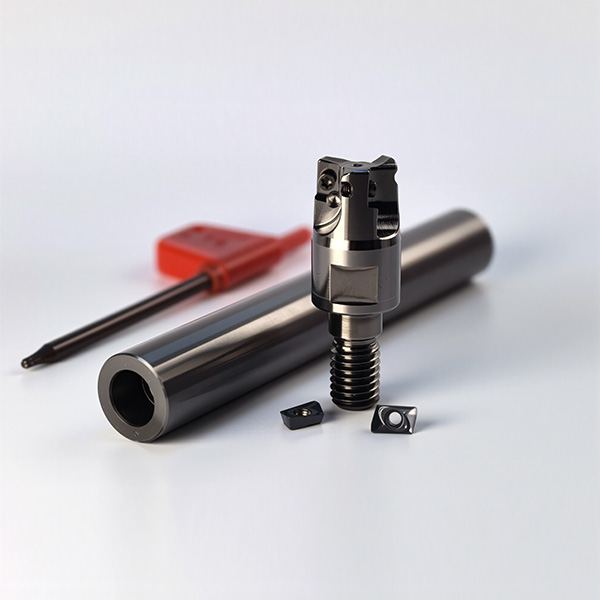

For cost-conscious operations, modular end mills with exchangeable heads offer solid-carbide performance at a lower total cost. When the cutting head wears out, only the head is replaced — typically costing 30–40% of a complete solid carbide end mill.

Summary Checklist

When choosing a carbide end mill, always consider: workpiece material hardness, required surface finish, chip evacuation needs, machine rigidity, and coating compatibility. Consulting with the tool manufacturer’s application engineers can help optimize selection for specific machining challenges.
