Solid Carbide 4 Flute Modular End Mill with Exchangeable Head for Roughing and Semi-Finishing applications Factory direct

Short Description:

● Adopting a dual constraint structure of conical surface and end face,it has higher fitting accuracy and better strength.
● Suitable for milling grooves and milling surfaces.
● Suitable processing material:hardened steel.titanium alloy.stainless steel.high-temperature alloy.

Function: Flat end mill
Application material: ISO material P/ M / K / S
Tool material: CNC machining center, turning lathe, conventional machine
Application machines: ALTiN /ALTiSiN/Tin
coating: Carbide
Delivery set: Individual packaging 1 pc
Flute: 4 Flute

Send email to us Whatsapp

Product Detail

Product Tags

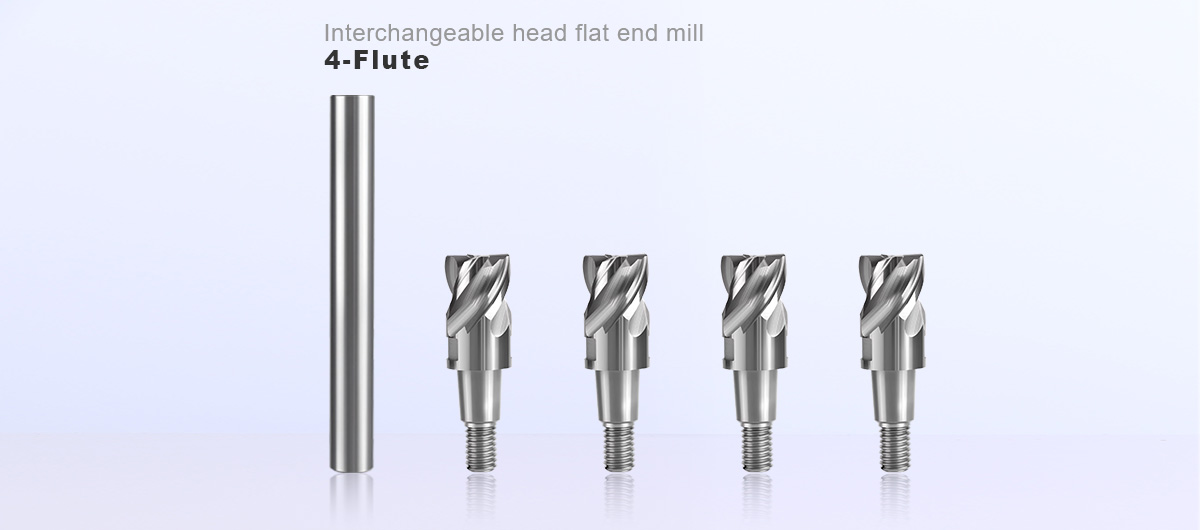

4-flute-interchangeable-head-flat-end-mill

Bullet Points

1. Efficient Chip Removal: 4-flute design allows for high feed rates and efficient chip evacuation.

2. Dual Application: Optimized geometry for both roughing and semi-finishing operations.

3. Stable Performance: High rigidity connection ensures no chatter during heavy cutting.

4. Factory Pricing: Direct from manufacturer, offering OEM customization for specific flute designs.

5. Longevity: Premium carbide grade resists wear and tear in general engineering materials.

product information

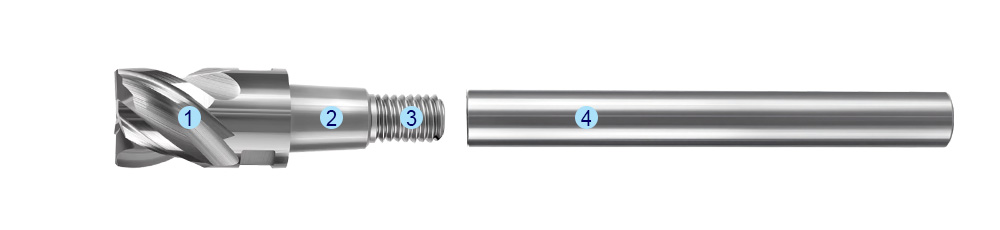

① The U-shaped flute with ample chip clearance ensures smoother evacuation and significantly reduces cutting resistance.
② The tapered interface features a 1:10 ratio, guaranteeing a secure and precisely aligned connection.
③ Threads are precision-ground to eliminate slippage and seizing while maintaining perfect concentricity with the anti-vibration shank.
④ The anti-vibration shank is crafted from premium 0.4 μm grain tungsten carbide, ground in one piece for high rigidity, outstanding wear resistance, and superior fracture toughness.
