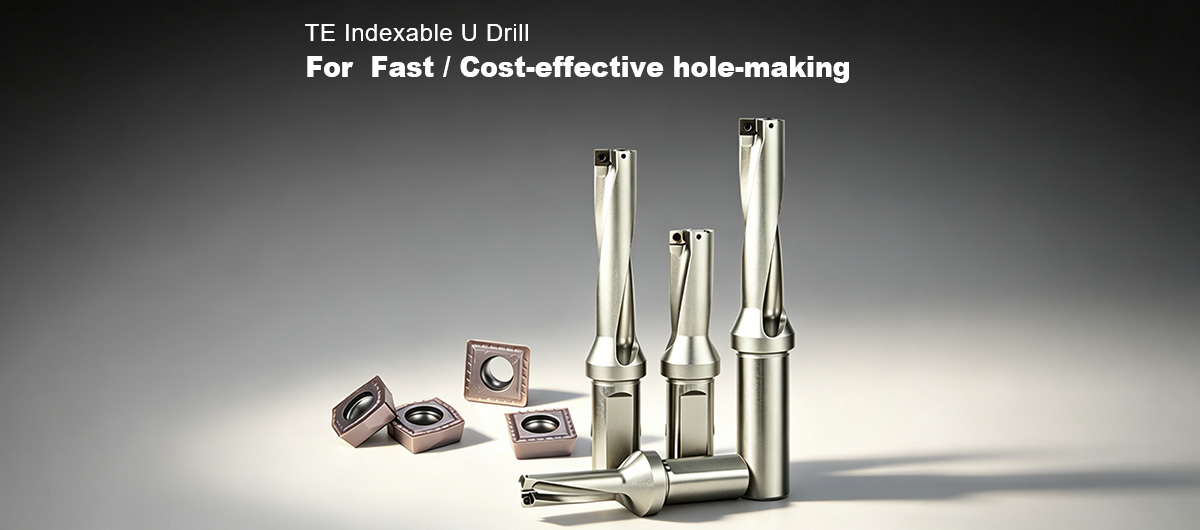

TE Indexable U Drill Internal Coolant SPMT SPGT XOMT Insert Drill CNC Metal Hole Opener

Short Description:

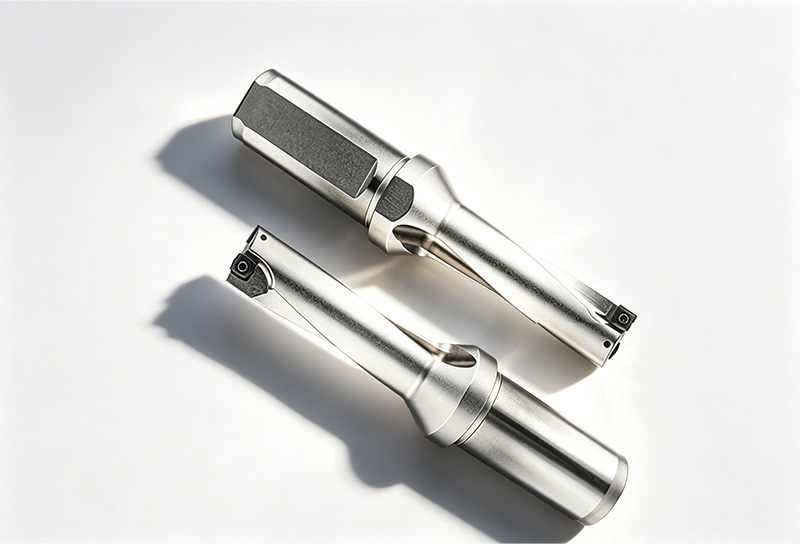

OPT TE Indexable U Drill is a high-efficiency CNC drilling tool designed for fast, accurate, and cost-effective hole-making in metal workpieces. It accepts industry-standard SPMT, SPGT, and XOMT indexable inserts, allowing users to replace only the cutting edge instead of the whole tool. The internal coolant design delivers coolant directly to the cutting zone, improving chip evacuation, reducing heat buildup, and extending tool life.

Model: TE Indexable U Drill
Application Materials: Steel, stainless steel, cast iron, alloy metals
Suitable Machines: CNC machining centers, CNC lathes, milling machines
Diameter Range: Decimal-point diameters available (contact for detailed size chart)

Send email to us Whatsapp

Product Detail

Product Tags

TE Indexable U Drill Internal Coolant SPMT SPGT XOMT Insert Drill CNC Metal Hole Opener

Bullet Points

Indexable insert system compatible with SPMT, SPGT, and XOMT inserts
Internal coolant channels for efficient heat and chip control
Decimal-point diameter range for precise hole sizing
High-efficiency "violent drill" geometry for aggressive material removal
Spiral flute and straight flute options available for different materials
Rigid tool body for stable performance on CNC machining centers and lathes
Cost-effective: replace inserts, not the entire drill

Applications

General Metal Parts Drilling:Fast drilling of through-holes and blind holes in steel, stainless steel, and cast iron parts.

Mold & Die Manufacturing:High-precision hole opening and rough drilling for molds, jigs, and fixtures.

Automotive Parts Machining:Drilling holes in engine blocks, transmission cases, suspension components, and brackets.

Hot Q&A

Q1: What insert types does this U drill use?

A1:This TE U drill is designed for SPMT, SPGT, and XOMT indexable inserts. Please confirm the insert model when ordering so we can supply the correct tool holder geometry.

Q2: What is the advantage of internal coolant?

A2: Internal coolant delivers cutting fluid directly to the cutting edge. This improves chip evacuation, reduces cutting temperature, prevents built-up edge, and significantly extends both insert life and drilling stability.

Q3: Can you provide decimal-point diameters?

A3: Yes. We offer decimal-point U drill diameters to meet precision hole-making requirements. Please contact us for the full size chart or send us your target diameter for confirmation.

Q4: What machines are compatible with this U drill?

A4: It is suitable for CNC machining centers, CNC lathes (with suitable holder), milling machines, and other machines that accept indexable drilling tools with standard shanks.

Q5: How do I choose between spiral flute and straight flute?

A5: Spiral flute is recommended for materials that produce long chips, such as steel and stainless steel, because it helps break and evacuate chips. Straight flute works well for short-chip materials like cast iron and brass.
