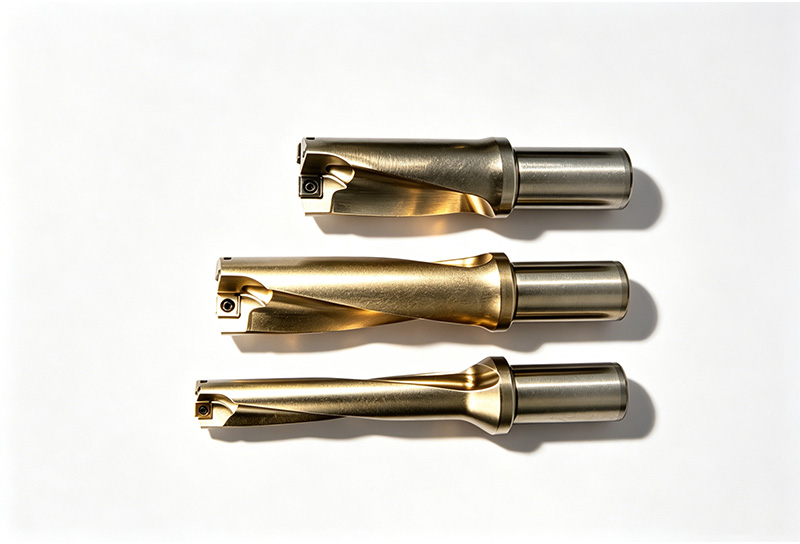

SP Series Indexable U Drill 2D/3D/4D/5D Fast Drill Bit with SPMG Inserts for CNC Metal Drilling

Short Description:

SP Series Indexable U Drill is a high-efficiency CNC drilling tool matched with SPMG carbide inserts. Available in 2D, 3D, 4D and 5D drilling depth ratios, this fast drill bit supports high-speed and high-precision drilling for steel, stainless steel, cast iron and aluminum alloy. Adopting premium 42CrMo steel body and internal cooling structure, it features stable cutting, low wear and long service life, perfectly suitable for industrial mass metal drilling processing.

Product: SP Series Indexable U Drill
Depth Ratio: 2D / 3D / 4D / 5D
Diameter Range: 14mm - 70mm

Send email to us Whatsapp

Product Detail

Product Tags

Bullet Points

High Drilling Efficiency: 3-5 times faster than ordinary twist drills, effectively shorten machining cycle time and improve production efficiency.
Universal SPMG Insert Matching: Compatible with multiple SPMG insert models including SPMG050204, SPMG060204, SPMG07T308, SPMG090408 and SPMG110408.
Internal Cooling System: Double spiral cooling holes ensure smooth coolant circulation, rapid heat dissipation and clean chip removal without blockage.
Super Durability: Integral high-strength steel body resists deformation under heavy cutting load; coated inserts improve wear resistance and high-temperature resistance.
Wide Material Adaptability: Applicable for steel, stainless steel, cast iron, aluminum alloy, copper alloy and titanium alloy.
Cost-Effective Design: Four cutting edges of SPMG inserts maximize utilization rate, reduce frequent tool replacement and lower overall processing cost.

Applications

CNC precision machining, automotive parts manufacturing, aerospace accessories, mold processing, mechanical hardware, engineering machinery parts, mass industrial metal drilling production.

Hot Q&A

Q1: What inserts are compatible with this SP series U drill?
A1：It is specially matched with SPMG series square carbide inserts, including SPMG050204, SPMG060204, SPMG07T308, SPMG090408, SPMG110408. Inserts for steel, stainless steel and cast iron are optional.

Q2: What do 2D/3D/4D/5D mean for the U drill?
A2：D refers to the drill bit diameter. Drilling depth = Diameter × Ratio. For example, a 20mm U drill: 2D=40mm depth, 3D=60mm depth, 4D=80mm depth, 5D=100mm depth.

Q3: Can this U drill drill stainless steel?
A3：Yes. Equipped with professional stainless steel-grade coated SPMG inserts, it can drill stainless steel, 40Cr and other hard alloy materials stably and efficiently.

Q4: Does this drill support internal cooling?
A4：Yes. It adopts double spiral internal cooling holes, which connects with machine tool coolant system to realize efficient heat dissipation and chip removal.

Q5: What is the MOQ and delivery time?
A5：Standard models support 1PC MOQ. Customized orders depend on requirements. Stock goods can be delivered in 7-15 days, customized orders take 15-30 days.
