Thread milling is a CNC machining process that creates internal or external threads using a helical interpolation path. Unlike traditional tapping, which cuts the full thread profile in a single pass, thread milling uses a circular interpolation movement combined with axial feed to progressively generate the thread — offering superior flexibility, precision, and reliability.
How Thread Milling Works
The thread milling process involves a rotating cutting tool that follows a helical path within or around the workpiece. The tool enters the hole, then simultaneously moves in a circular pattern (X-Y plane) while feeding axially (Z-axis) at a rate matching the thread pitch. This helical interpolation creates the thread profile progressively, with each revolution removing a small amount of material.
One of the key advantages is that the same tool can create threads of different diameters — as long as the pitch remains the same — simply by adjusting the CNC program. This flexibility makes thread milling particularly valuable in low-volume, high-variety production environments.
Key Advantages of Thread Milling

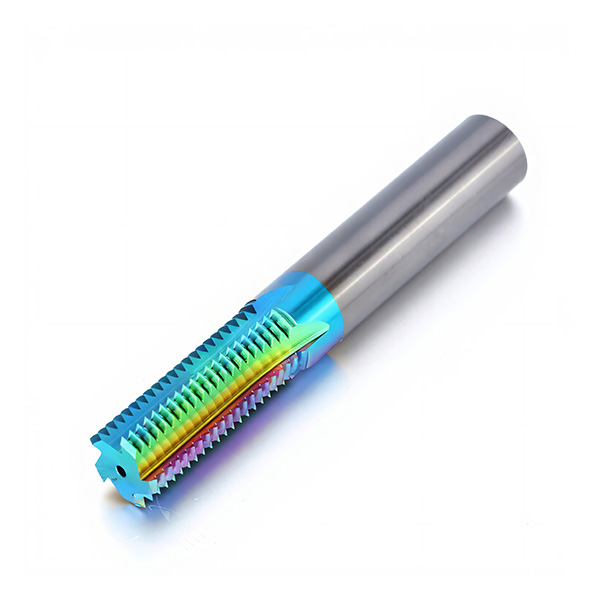

- Bottom-hole threading capability — Thread mills can create threads very close to the bottom of blind holes, which is difficult with taps. The no-bottom-hole straight flute thread mill is specifically designed for this application.
- Reduced risk of tool breakage — Unlike taps, which can break inside the workpiece and require expensive extraction, a broken thread mill can simply be withdrawn and replaced.
- Better surface finish — The progressive cutting action produces smoother thread flanks, improving thread quality and fatigue resistance.
- Multi-pitch capability — A single thread mill can produce left-hand or right-hand threads of various diameters within its size range.
- Superior performance in hard materials — Thread milling is particularly effective in difficult-to-machine materials like titanium and superalloys.
Thread Milling Standards and Applications
For American standard threads, the multi-flute UNC/UNF thread mill provides excellent productivity with its bottom-hole-free design, allowing efficient threading of Unified National Coarse and Fine threads without pre-drilling a relief hole.
In aerospace and medical applications where titanium alloys and superalloys are common, the 3-teeth solid carbide thread milling cutter is specially optimized with enhanced edge geometry and AlTiN coating to withstand the demanding cutting conditions these materials present.
Thread Milling Speeds and Feeds
Thread milling typically operates at higher RPM than tapping, with spindle speeds of 3,000–8,000 RPM common for carbide tools in steel. The feed rate is calculated based on the thread pitch, tool diameter, and desired surface speed. Proper coolant application and chip evacuation are essential for optimal results.
