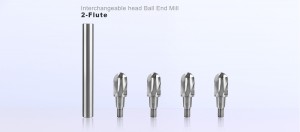

Solid Carbide Interchangeable Head Milling Cutter with High Rigidity Shank and Quick Change head mill for CNC Machining
Bullet Points
1. Unmatched Precision: Solid carbide construction ensures exceptional dimensional accuracy and surface finish.
2. High Rigidity: Reinforced shank design minimizes deflection during high-speed machining.
3. Time-Saving: Quick-change mechanism allows for tool head replacement in seconds, reducing machine downtime.
4. Versatile: Suitable for finishing, semi-finishing, and light roughing across various materials.
5. Cost-Effective: Replace only the worn head, not the entire tool, significantly lowering tooling costs.
product information

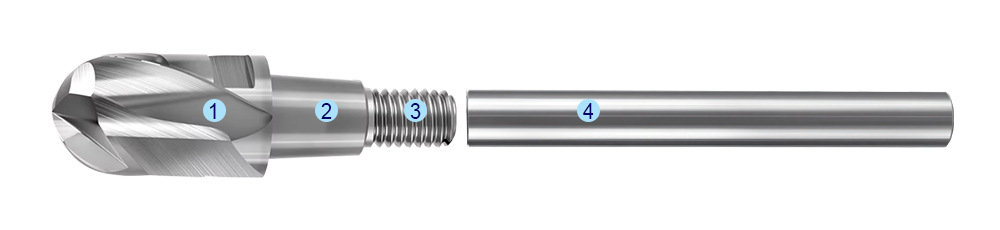

① U-groove design with large chip accommodation space ensures smoother chip evacuation and minimizes cutting load
② Tapered interface with a taper ratio of 1:10
③ Precision-ground threads prevent thread slipping and galling while ensuring concentricity with the shock-resistant rod
④ Tungsten steel shock-resistant rod: made of high-quality 0.4μm tungsten steel base material, precision-ground in one piece for high strength, excellent wear resistance and breakage resistance
