Single Flute 55 Degree Inch Range Thread Mill Milling Cutter End Mill Tool
Applicable materials:
Copper, aluminum, stainless steel, titanium alloy, cast iron, etc.
Features:
There are not many threaded workpieces, thread specifications and models for suitable processing of proofing pieces, and inch pipe threads can be processed.
British taper pipe threads, Wyeth threads, and single thread threads have low machining resistance and strong versatility for use.
Advantage:
The same thread milling cutter can process the thread pitch within a certain range, and the longer clearance length can obtain a longer processing depth. Make thread processing more flexible.
Application
We use tungsten steel materials to ensure the stability of products from raw materials
Match appropriate coating according to the workpiece materials. Thanks the high precesion thread grinding equipment to make sure stable quality for our products.
Product production, inspection

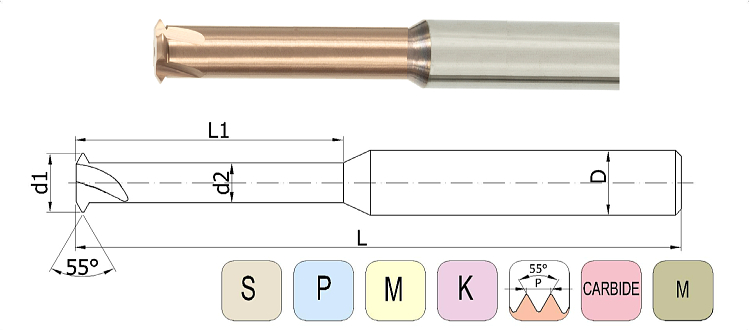

Single Tooth 55 ° Inch Range Thread Milling Cutter
| LtemNo. | Specifications | d1 | d2 | L1 | L | D | Z |
| S14-10 12381275D | P1.336-P2.54 | 12 | 1.9 | 38 | 75 | 12 | 4 |
| S19-14 10301075D | P1.336-P1.814 | 10 | 2 | 30 | 75 | 10 | 4 |
| S19-14 822860D | P1.336-P1.814 | 8 | 2.2 | 22 | 60 | 8 | 4 |
| S20 412450D | P1.27 | 4 | 4.5 | 12 | 50 | 4 | 4 |
| S24 3.510450D | P1.058 | 3.5 | 5.9 | 10 | 50 | 4 | 4 |
| S28-18 614650D | P0.907-P1.411 | 6 | 7.3 | 14 | 50 | 6 | 4 |
| S32 3.18450D | P0.7937 | 3.1 | 8.2 | 8 | 50 | 4 | 4 |
