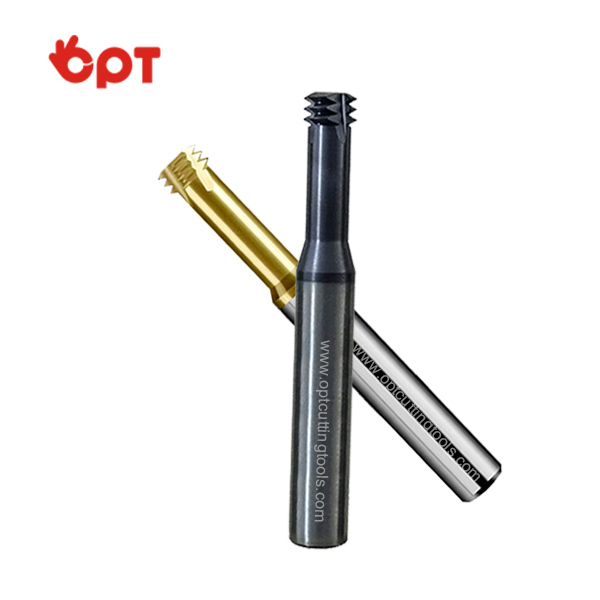

CNC 60 Degree Tungsten Steel Three Row Thread Milling Cutter
Applicable machines:
Programming and using equipment such as engraving machines, high-speed machines, walking machines, CNC machining centers, etc.
Applicable materials:
carbon steel,alloy steel,cast iron,stainless steel,high temperature,alloy titanium alloy.
Features:
It is suitable for processing small-diameter threads and workpieces with relatively high hardness. The three-button tooth has good rigidity, high strength, and is not easy to break.
Advantage：
The tool has good rigidity and does not allow for cutting depth up to 5 times the diameter.
The number of cutting edges can reach 4-8, with high cutting efficiency and stable thread size to be processed.
Application
We use tungsten steel materials to ensure the stability of products from raw materials
Match appropriate coating according to the workpiece materials. Thanks the high precesion thread grinding equipment to make sure stable quality for our products.
Product production, inspection
| LtemNo. | Specifications | d1 | d2 | L1 | L | D | Z |
| T0.25 0.732450X | M1.0*0.25 D0.73*2*d4*50*3F | 0.73 | 0.43 | 2 | 50 | 4 | 3 |
| T0.25 0.922.4450X | M1.2*0.25 D0.92*2.4*d4*50*3F | 0.92 | 0.62 | 2.4 | 50 | 4 | 3 |
| T0.3 1.052.8450X | M1.4*0.3 D1.05*2.8*d4*50*3F | 1.05 | 0.65 | 2.8 | 50 | 4 | 3 |
| T0.35 1.23.2450X | M1.6*0.35 D1.2*3.2*d4*50*3F | 1.2 | 0.78 | 3.2 | 50 | 4 | 3 |
| T0.35 1.43.6450X | M1.8*0.35 D1.4*3.6*d4*50*3F | 1.4 | 0.98 | 3.6 | 50 | 4 | 3 |
| T0.4 1.554450X | M2.0*0.4 D1.55*4*d4*50*3F | 1.55 | 1.05 | 4 | 50 | 4 | 3 |
| T0.45 1.75450X | M2.2*0.45 D1.7*5*d4*50*3F | 1.7 | 1.1 | 5 | 50 | 4 | 3 |
| T0.45 25450X | M2.5*0.45 D2*5*d4*50*3F | 2 | 1.45 | 5 | 50 | 4 | 3 |
| T0.5 2.46450X | M3.0*0.5 D2.4*6*d4*50*3F | 2.4 | 1.8 | 6 | 50 | 4 | 3 |
| T0.6 2.758450X | M3.5*0.6 D2.75*8*d4*50*3F | 2.75 | 2 | 8 | 50 | 4 | 3 |
| T0.7 3.158450X | M4.0*0.7 D3.15*8*d4*50*3F | 3.15 | 2.3 | 8 | 50 | 4 | 3 |
| T0.75 3.59450X | M4.5*0.75 D3.5*9*d4*50*4F | 3.5 | 2.55 | 9 | 50 | 4 | 4 |
| T0.8 410450X | M5.0*0.8 D4*10*d4*50*4F | 4 | 3 | 10 | 50 | 4 | 4 |
| T1.0 4.812650X | M6.0*1.0 D4.8*12*d6*50*4F | 4.8 | 3.6 | 12 | 50 | 6 | 4 |
| T1.0 616650X | M8*1.0 D6*16*d6*50*4F | 6 | 4.8 | 16 | 50 | 6 | 4 |
| T1.25 616650X | M8*1.25 D6*16*d6*50*4F | 6 | 4.5 | 16 | 50 | 6 | 4 |
| T1.0 820860X | M10*1.0 D8*20*d8*60*4F | 8 | 6.8 | 20 | 60 | 8 | 4 |
| T1.5 820860X | M10*1.5 D8*20*d8*60*4F | 8 | 6.2 | 20 | 60 | 8 | 4 |
| T1.0 10241075X | M12*1.0 D10*24*d10*75*4F | 10 | 8.7 | 24 | 75 | 10 | 4 |
| T1.5 10241075X | M12*1.5 D10*24*d10*75*4F | 10 | 8.1 | 24 | 75 | 10 | 4 |
| T1.75 10241075X | M12*1.75 D10*24*d10*75*4F | 10 | 7.8 | 24 | 75 | 10 | 4 |
| T1.5 12281275X | M14*1.5 D12*28*d12*75*4F | 12 | 10.1 | 28 | 75 | 12 | 4 |
| T2.0 10281075X | M14*2.0 D10*28*d10*75*4F | 10 | 7.5 | 28 | 75 | 10 | 4 |
| T2.0 12321275X | M16*2.0 D12*32*d12*75*4F | 12 | 9.5 | 32 | 75 | 12 | 4 |
| T1.5 143214100X | M16*1.5 D14*32*d14*100*4F | 14 | 12.1 | 32 | 100 | 14 | 4 |
| T2.0 13.53214100X | M16*2.0 D13.5*32*d14*100*4F | 13.5 | 11 | 32 | 100 | 14 | 4 |
| T1.5 164016100X | M20*1.5 D16*40*d16*100*4F | 16 | 14.1 | 40 | 100 | 16 | 4 |
| T2.5 164016100X | M20*2.5 D16*40*d16*100*4F | 16 | 12.6 | 40 | 100 | 16 | 4 |
| T3.0 164816100X | M24*3.0 D16*48*d16*100*4F | 16 | 12 | 48 | 100 | 16 | 4 |
| T0.25 0.733450X | M1.0*0.25 D0.73*3*d4*50*3F | 0.73 | 0.43 | 3 | 50 | 4 | 3 |
| T0.25 0.923.6450X | M1.2*0.25 D0.92*3.6*d4*50*3F | 0.92 | 0.62 | 3.6 | 50 | 4 | 3 |
| T0.3 1.054.2450X | M1.4*0.3 D1.05*4.2*d4*50*3F | 1.05 | 0.65 | 4.2 | 50 | 4 | 3 |
| T0.35 1.24.8450X | M1.6*0.35 D1.2*4.8*d4*50*3F | 1.2 | 0.78 | 4.8 | 50 | 4 | 3 |
| T0.4 1.556450X | M2.0*0.4 D1.55*6*d4*50*3F | 1.55 | 1.05 | 6 | 50 | 4 | 3 |
| T0.45 27.5450X | M2.5*0.45 D2*7.5*d4*50*3F | 2 | 1.45 | 7.5 | 50 | 4 | 3 |
| T0.5 2.49450X | M3.0*0.5 D2.4*9*d4*50*3F | 2.4 | 1.8 | 9 | 50 | 4 | 3 |
| T0.7 3.1512450X | M4.0*0.7 D3.15*12*d4*50*3F | 3.15 | 2.3 | 12 | 50 | 4 | 3 |
| T0.8 415450X | M5.0*0.8 D4*15*d4*50*3F | 4 | 3 | 15 | 50 | 4 | 3 |
| T1.0 4.818650X | M6.0*1.0 D4.8*18*d6*50*4F | 4.8 | 3.6 | 18 | 50 | 6 | 4 |
| T1.25 624650X | M8*1.25 D6*24*d6*50*4F | 6 | 4.5 | 24 | 50 | 6 | 4 |
| T1.5 830860X | M10*1.5 D8*30*d8*60*4F | 8 | 6.2 | 30 | 60 | 8 | 4 |
| T1.75 10361075X | M12*1.75 D10*36*d10*75*4F | 10 | 7.8 | 36 | 75 | 10 | 4 |
